Explainable Fraud Detection and Investigation Platform

Exploratory Data Analysis & Business Understanding

Objective

The objective of this project is to develop an Explainable Fraud Detection and Investigation Platform capable of identifying fraudulent financial transactions using machine learning while providing interpretable explanations for predictions.

This notebook focuses on understanding the IEEE-CIS Fraud Detection dataset through exploratory data analysis.

Deliverables

By the end of this notebook, the following deliverables will be produced:

  • A comprehensive exploratory analysis of the IEEE-CIS Fraud Detection dataset.
  • A data quality assessment, including missing value analysis and variable type identification.
  • Statistical summaries and visualizations of numerical and categorical features.
  • An evaluation of the target variable distribution and class imbalance.
  • Correlation analysis to identify relationships among numerical variables and their association with fraudulent transactions.
  • Business insights highlighting key fraud patterns, transaction characteristics, and potential predictive features.
  • Recommendations that guide the data wrangling, preprocessing, and feature engineering phase of the Explainable Fraud Detection and Investigation Platform.

Environment Test

Code
import sys
import numpy as np
import pandas as pd

print(sys.executable)
print(sys.version)
print("Environment ready")
/Users/hshazel/Projects/explainable-fraud-investigation-platform/.venv/bin/python
3.14.6 (main, Jun 10 2026, 10:03:53) [Clang 21.0.0 (clang-2100.0.123.102)]
Environment ready

2. Import Libraries

Code
import warnings
warnings.filterwarnings("ignore")

import numpy as np
import pandas as pd


import matplotlib.pyplot as plt
import seaborn as sns

from pathlib import Path

sns.set_theme(style="whitegrid")

pd.set_option("display.max_columns", None)
pd.set_option("display.max_rows", 100)

3. Load Dataset

Code
# Load dataset
from pathlib import Path

# Project root: notebook is assumed to be inside notebooks/
PROJECT_ROOT = Path("..")
RAW_DATA_PATH = PROJECT_ROOT / "data" / "raw"

transaction_file = RAW_DATA_PATH / "train_transaction.csv"
identity_file = RAW_DATA_PATH / "train_identity.csv"

# Verify that both files exist
print("Transaction file exists:", transaction_file.exists())
print("Identity file exists:", identity_file.exists())

# Load both datasets
train_transaction = pd.read_csv(transaction_file)
train_identity = pd.read_csv(identity_file)

print("Transaction shape:", train_transaction.shape)
print("Identity shape:", train_identity.shape)

# Merge both datasets
df = train_transaction.merge(
    train_identity,
    on="TransactionID",
    how="left"
)

print("Merged dataset shape:", df.shape)
Transaction file exists: True
Identity file exists: True
Transaction shape: (590540, 394)
Identity shape: (144233, 41)
Merged dataset shape: (590540, 434)

4. Initial Exploration

Code
df.head()
TransactionID isFraud TransactionDT TransactionAmt ProductCD card1 card2 card3 card4 card5 card6 addr1 addr2 dist1 dist2 P_emaildomain R_emaildomain C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 M1 M2 M3 M4 M5 M6 M7 M8 M9 V1 V2 V3 V4 V5 V6 V7 V8 V9 V10 V11 V12 V13 V14 V15 V16 V17 V18 V19 V20 V21 V22 V23 V24 V25 V26 V27 V28 V29 V30 V31 V32 V33 V34 V35 V36 V37 V38 V39 V40 V41 V42 V43 V44 V45 V46 V47 V48 V49 V50 V51 V52 V53 V54 V55 V56 V57 V58 V59 V60 V61 V62 V63 V64 V65 V66 V67 V68 V69 V70 V71 V72 V73 V74 V75 V76 V77 V78 V79 V80 V81 V82 V83 V84 V85 V86 V87 V88 V89 V90 V91 V92 V93 V94 V95 V96 V97 V98 V99 V100 V101 V102 V103 V104 V105 V106 V107 V108 V109 V110 V111 V112 V113 V114 V115 V116 V117 V118 V119 V120 V121 V122 V123 V124 V125 V126 V127 V128 V129 V130 V131 V132 V133 V134 V135 V136 V137 V138 V139 V140 V141 V142 V143 V144 V145 V146 V147 V148 V149 V150 V151 V152 V153 V154 V155 V156 V157 V158 V159 V160 V161 V162 V163 V164 V165 V166 V167 V168 V169 V170 V171 V172 V173 V174 V175 V176 V177 V178 V179 V180 V181 V182 V183 V184 V185 V186 V187 V188 V189 V190 V191 V192 V193 V194 V195 V196 V197 V198 V199 V200 V201 V202 V203 V204 V205 V206 V207 V208 V209 V210 V211 V212 V213 V214 V215 V216 V217 V218 V219 V220 V221 V222 V223 V224 V225 V226 V227 V228 V229 V230 V231 V232 V233 V234 V235 V236 V237 V238 V239 V240 V241 V242 V243 V244 V245 V246 V247 V248 V249 V250 V251 V252 V253 V254 V255 V256 V257 V258 V259 V260 V261 V262 V263 V264 V265 V266 V267 V268 V269 V270 V271 V272 V273 V274 V275 V276 V277 V278 V279 V280 V281 V282 V283 V284 V285 V286 V287 V288 V289 V290 V291 V292 V293 V294 V295 V296 V297 V298 V299 V300 V301 V302 V303 V304 V305 V306 V307 V308 V309 V310 V311 V312 V313 V314 V315 V316 V317 V318 V319 V320 V321 V322 V323 V324 V325 V326 V327 V328 V329 V330 V331 V332 V333 V334 V335 V336 V337 V338 V339 id_01 id_02 id_03 id_04 id_05 id_06 id_07 id_08 id_09 id_10 id_11 id_12 id_13 id_14 id_15 id_16 id_17 id_18 id_19 id_20 id_21 id_22 id_23 id_24 id_25 id_26 id_27 id_28 id_29 id_30 id_31 id_32 id_33 id_34 id_35 id_36 id_37 id_38 DeviceType DeviceInfo
0 2987000 0 86400 68.5 W 13926 NaN 150.0 discover 142.0 credit 315.0 87.0 19.0 NaN NaN NaN 1.0 1.0 0.0 0.0 0.0 1.0 0.0 0.0 1.0 0.0 2.0 0.0 1.0 1.0 14.0 NaN 13.0 NaN NaN NaN NaN NaN NaN 13.0 13.0 NaN NaN NaN 0.0 T T T M2 F T NaN NaN NaN 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 0.0 0.0 0.0 0.0 0.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 117.0 0.0 0.0 0.0 0.0 0.0 117.0 0.0 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN 0.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 0.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 0.0 117.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 117.0 0.0 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
1 2987001 0 86401 29.0 W 2755 404.0 150.0 mastercard 102.0 credit 325.0 87.0 NaN NaN gmail.com NaN 1.0 1.0 0.0 0.0 0.0 1.0 0.0 0.0 0.0 0.0 1.0 0.0 1.0 1.0 0.0 NaN NaN 0.0 NaN NaN NaN NaN NaN 0.0 NaN NaN NaN NaN 0.0 NaN NaN NaN M0 T T NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN 0.0 0.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN 0.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
2 2987002 0 86469 59.0 W 4663 490.0 150.0 visa 166.0 debit 330.0 87.0 287.0 NaN outlook.com NaN 1.0 1.0 0.0 0.0 0.0 1.0 0.0 0.0 1.0 0.0 1.0 0.0 1.0 1.0 0.0 NaN NaN 0.0 NaN NaN NaN NaN NaN 0.0 315.0 NaN NaN NaN 315.0 T T T M0 F F F F F 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 1.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN 0.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
3 2987003 0 86499 50.0 W 18132 567.0 150.0 mastercard 117.0 debit 476.0 87.0 NaN NaN yahoo.com NaN 2.0 5.0 0.0 0.0 0.0 4.0 0.0 0.0 1.0 0.0 1.0 0.0 25.0 1.0 112.0 112.0 0.0 94.0 0.0 NaN NaN NaN NaN 84.0 NaN NaN NaN NaN 111.0 NaN NaN NaN M0 T F NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN 1.0 1.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 1.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 48.0 28.0 0.0 10.0 4.0 1.0 38.0 24.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 50.0 1758.0 925.0 0.0 354.0 135.0 50.0 1404.0 790.0 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN 1.0 28.0 0.0 0.0 0.0 0.0 10.0 0.0 4.0 0.0 0.0 1.0 1.0 1.0 1.0 38.0 24.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 50.0 1758.0 925.0 0.0 354.0 0.0 135.0 0.0 0.0 0.0 50.0 1404.0 790.0 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
4 2987004 0 86506 50.0 H 4497 514.0 150.0 mastercard 102.0 credit 420.0 87.0 NaN NaN gmail.com NaN 1.0 1.0 0.0 0.0 0.0 1.0 0.0 1.0 0.0 1.0 1.0 0.0 1.0 1.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 6.0 18.0 140.0 0.0 0.0 0.0 0.0 1803.0 49.0 64.0 0.0 0.0 0.0 0.0 0.0 0.0 15557.990234 169690.796875 0.0 0.0 0.0 515.0 5155.0 2840.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 0.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 70787.0 NaN NaN NaN NaN NaN NaN NaN NaN 100.0 NotFound NaN -480.0 New NotFound 166.0 NaN 542.0 144.0 NaN NaN NaN NaN NaN NaN NaN New NotFound Android 7.0 samsung browser 6.2 32.0 2220x1080 match_status:2 T F T T mobile SAMSUNG SM-G892A Build/NRD90M
Code
df.info()
<class 'pandas.DataFrame'>
RangeIndex: 590540 entries, 0 to 590539
Columns: 434 entries, TransactionID to DeviceInfo
dtypes: float64(399), int64(4), str(31)
memory usage: 1.9 GB
Code
# Because 434 columns produce an enormous descriptive table, we inspect a useful subset first:
df[
    [
        "TransactionID",
        "isFraud",
        "TransactionDT",
        "TransactionAmt",
        "card1",
        "card2",
        "card3",
        "dist1",
        "dist2",
    ]
].describe().T
count mean std min 25% 50% 75% max
TransactionID 590540.0 3.282270e+06 1.704744e+05 2987000.000 3134634.750 3282269.500 3429904.25 3.577539e+06
isFraud 590540.0 3.499001e-02 1.837546e-01 0.000 0.000 0.000 0.00 1.000000e+00
TransactionDT 590540.0 7.372311e+06 4.617224e+06 86400.000 3027057.750 7306527.500 11246620.00 1.581113e+07
TransactionAmt 590540.0 1.350272e+02 2.391625e+02 0.251 43.321 68.769 125.00 3.193739e+04
card1 590540.0 9.898735e+03 4.901170e+03 1000.000 6019.000 9678.000 14184.00 1.839600e+04
card2 581607.0 3.625555e+02 1.577932e+02 100.000 214.000 361.000 512.00 6.000000e+02
card3 588975.0 1.531949e+02 1.133644e+01 100.000 150.000 150.000 150.00 2.310000e+02
dist1 238269.0 1.185022e+02 3.718720e+02 0.000 3.000 8.000 24.00 1.028600e+04
dist2 37627.0 2.318554e+02 5.290535e+02 0.000 7.000 37.000 206.00 1.162300e+04
Code
# Randomly display 5 rows from the DataFrame.”
df.sample(5, random_state=42)
TransactionID isFraud TransactionDT TransactionAmt ProductCD card1 card2 card3 card4 card5 card6 addr1 addr2 dist1 dist2 P_emaildomain R_emaildomain C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 M1 M2 M3 M4 M5 M6 M7 M8 M9 V1 V2 V3 V4 V5 V6 V7 V8 V9 V10 V11 V12 V13 V14 V15 V16 V17 V18 V19 V20 V21 V22 V23 V24 V25 V26 V27 V28 V29 V30 V31 V32 V33 V34 V35 V36 V37 V38 V39 V40 V41 V42 V43 V44 V45 V46 V47 V48 V49 V50 V51 V52 V53 V54 V55 V56 V57 V58 V59 V60 V61 V62 V63 V64 V65 V66 V67 V68 V69 V70 V71 V72 V73 V74 V75 V76 V77 V78 V79 V80 V81 V82 V83 V84 V85 V86 V87 V88 V89 V90 V91 V92 V93 V94 V95 V96 V97 V98 V99 V100 V101 V102 V103 V104 V105 V106 V107 V108 V109 V110 V111 V112 V113 V114 V115 V116 V117 V118 V119 V120 V121 V122 V123 V124 V125 V126 V127 V128 V129 V130 V131 V132 V133 V134 V135 V136 V137 V138 V139 V140 V141 V142 V143 V144 V145 V146 V147 V148 V149 V150 V151 V152 V153 V154 V155 V156 V157 V158 V159 V160 V161 V162 V163 V164 V165 V166 V167 V168 V169 V170 V171 V172 V173 V174 V175 V176 V177 V178 V179 V180 V181 V182 V183 V184 V185 V186 V187 V188 V189 V190 V191 V192 V193 V194 V195 V196 V197 V198 V199 V200 V201 V202 V203 V204 V205 V206 V207 V208 V209 V210 V211 V212 V213 V214 V215 V216 V217 V218 V219 V220 V221 V222 V223 V224 V225 V226 V227 V228 V229 V230 V231 V232 V233 V234 V235 V236 V237 V238 V239 V240 V241 V242 V243 V244 V245 V246 V247 V248 V249 V250 V251 V252 V253 V254 V255 V256 V257 V258 V259 V260 V261 V262 V263 V264 V265 V266 V267 V268 V269 V270 V271 V272 V273 V274 V275 V276 V277 V278 V279 V280 V281 V282 V283 V284 V285 V286 V287 V288 V289 V290 V291 V292 V293 V294 V295 V296 V297 V298 V299 V300 V301 V302 V303 V304 V305 V306 V307 V308 V309 V310 V311 V312 V313 V314 V315 V316 V317 V318 V319 V320 V321 V322 V323 V324 V325 V326 V327 V328 V329 V330 V331 V332 V333 V334 V335 V336 V337 V338 V339 id_01 id_02 id_03 id_04 id_05 id_06 id_07 id_08 id_09 id_10 id_11 id_12 id_13 id_14 id_15 id_16 id_17 id_18 id_19 id_20 id_21 id_22 id_23 id_24 id_25 id_26 id_27 id_28 id_29 id_30 id_31 id_32 id_33 id_34 id_35 id_36 id_37 id_38 DeviceType DeviceInfo
470624 3457624 0 12153579 724.000 W 7826 481.0 150.0 mastercard 224.0 debit 387.0 87.0 NaN NaN aol.com NaN 3.0 1.0 0.0 0.0 0.0 1.0 0.0 0.0 2.0 0.0 1.0 0.0 2.0 2.0 0.0 NaN NaN 145.0 0.0 NaN NaN NaN NaN 145.0 0.0 NaN NaN NaN 145.0 T T F M0 F T F F T 1.0 1.0 1.0 1.0 1.0 2.0 2.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 1.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 2.0 2.0 2.0 724.0 724.000000 724.0 0.0 0.000000 0.0 0.0 0.0 0.0 724.0 724.0 724.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN 0.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 0.000000 0.000000 0.000000 0.0 0.000000 0.0 0.0 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
565820 3552820 0 15005886 108.500 W 12544 321.0 150.0 visa 226.0 debit 476.0 87.0 0.0 NaN yahoo.com NaN 2.0 1.0 0.0 0.0 0.0 1.0 0.0 0.0 1.0 0.0 1.0 1.0 7.0 2.0 122.0 122.0 5.0 347.0 5.0 NaN NaN NaN NaN 347.0 122.0 NaN NaN NaN 347.0 T T T M0 F T T T T 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 3.0 1.0 0.0 3.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 112.000000 29.0 0.0 112.000000 29.0 0.0 0.0 0.0 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN 0.0 1.0 0.0 0.0 0.0 0.0 3.0 0.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 0.000000 112.000000 29.000000 0.0 112.000000 0.0 29.0 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
284083 3271083 0 6970178 47.950 W 9400 111.0 150.0 mastercard 224.0 debit 315.0 87.0 6.0 NaN gmail.com NaN 1.0 1.0 0.0 0.0 2.0 1.0 0.0 0.0 1.0 0.0 1.0 0.0 3.0 1.0 32.0 32.0 22.0 22.0 22.0 NaN NaN NaN NaN 33.0 33.0 NaN NaN NaN 33.0 T T T NaN NaN F NaN NaN NaN 1.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 1.0 0.0 0.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 0.0 1.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 0.0 1.0 1.0 0.0 0.0 0.0 0.0 1.0 0.0 0.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 47.950001 0.0 0.0 47.950001 0.0 0.0 0.0 0.0 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN 0.0 0.0 0.0 1.0 1.0 0.0 1.0 0.0 0.0 1.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 0.000000 47.950001 0.000000 0.0 47.950001 0.0 0.0 87.949997 135.899994 87.949997 0.000000 0.000000 0.000000 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
239689 3226689 0 5673658 100.599 C 15885 545.0 185.0 visa 138.0 debit NaN NaN NaN NaN gmail.com gmail.com 2.0 3.0 0.0 1.0 0.0 1.0 1.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 NaN 0.0 0.0 0.0 0.0 0.0 NaN NaN 0.0 NaN 0.0 NaN NaN 0.0 NaN NaN NaN M2 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN 0.0 0.0 1.0 1.0 1.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 3.0 3.0 0.0 0.0 1.0 0.0 0.0 2.0 2.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 2.0 2.0 1.0 1.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 3.0 3.0 1.0 0.0 0.0 1.0 1.0 0.0 0.0 2.0 2.0 1.0 0.0 0.0 0.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 0.000000 0.0 0.0 0.000000 0.0 0.0 0.0 0.0 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN 1.0 1.0 0.0 2.0 2.0 0.0 0.0 0.0 0.0 0.0 0.0 2.0 2.0 2.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 100.599297 100.599297 100.599297 0.0 0.000000 0.0 0.0 0.000000 0.000000 0.000000 100.599297 100.599297 100.599297 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
281855 3268855 0 6886780 107.950 W 15497 490.0 150.0 visa 226.0 debit 299.0 87.0 NaN NaN hotmail.com NaN 10.0 14.0 0.0 0.0 11.0 8.0 0.0 0.0 6.0 0.0 10.0 0.0 43.0 9.0 549.0 549.0 16.0 549.0 16.0 NaN NaN NaN NaN 446.0 NaN NaN NaN NaN 549.0 NaN NaN NaN NaN NaN T NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN 0.0 0.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 1.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 0.0 0.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 0.0 1.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 0.000000 0.0 0.0 0.000000 0.0 0.0 0.0 0.0 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN 0.0 0.0 0.0 0.0 0.0 0.0 1.0 0.0 0.0 0.0 0.0 1.0 2.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1.0 0.000000 107.949997 0.000000 0.0 107.949997 0.0 0.0 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.0 0.0 0.0 NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN

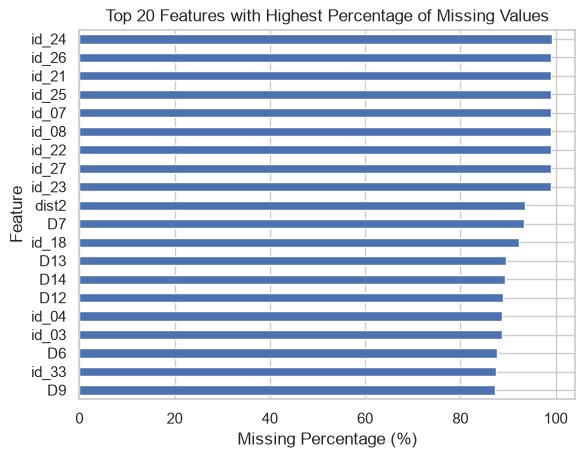

5. Data Quality Assessment

Code
print(df.shape)

print(df.columns.tolist())

print(df.dtypes.value_counts())

print(df.duplicated().sum())

# Create a table

quality = pd.DataFrame({
    "Missing": df.isnull().sum(),
    "Missing %": df.isnull().mean()*100,
    "Data Type": df.dtypes
})

quality.sort_values(
    "Missing %",
    ascending=False
).head(30)
(590540, 434)
['TransactionID', 'isFraud', 'TransactionDT', 'TransactionAmt', 'ProductCD', 'card1', 'card2', 'card3', 'card4', 'card5', 'card6', 'addr1', 'addr2', 'dist1', 'dist2', 'P_emaildomain', 'R_emaildomain', 'C1', 'C2', 'C3', 'C4', 'C5', 'C6', 'C7', 'C8', 'C9', 'C10', 'C11', 'C12', 'C13', 'C14', 'D1', 'D2', 'D3', 'D4', 'D5', 'D6', 'D7', 'D8', 'D9', 'D10', 'D11', 'D12', 'D13', 'D14', 'D15', 'M1', 'M2', 'M3', 'M4', 'M5', 'M6', 'M7', 'M8', 'M9', 'V1', 'V2', 'V3', 'V4', 'V5', 'V6', 'V7', 'V8', 'V9', 'V10', 'V11', 'V12', 'V13', 'V14', 'V15', 'V16', 'V17', 'V18', 'V19', 'V20', 'V21', 'V22', 'V23', 'V24', 'V25', 'V26', 'V27', 'V28', 'V29', 'V30', 'V31', 'V32', 'V33', 'V34', 'V35', 'V36', 'V37', 'V38', 'V39', 'V40', 'V41', 'V42', 'V43', 'V44', 'V45', 'V46', 'V47', 'V48', 'V49', 'V50', 'V51', 'V52', 'V53', 'V54', 'V55', 'V56', 'V57', 'V58', 'V59', 'V60', 'V61', 'V62', 'V63', 'V64', 'V65', 'V66', 'V67', 'V68', 'V69', 'V70', 'V71', 'V72', 'V73', 'V74', 'V75', 'V76', 'V77', 'V78', 'V79', 'V80', 'V81', 'V82', 'V83', 'V84', 'V85', 'V86', 'V87', 'V88', 'V89', 'V90', 'V91', 'V92', 'V93', 'V94', 'V95', 'V96', 'V97', 'V98', 'V99', 'V100', 'V101', 'V102', 'V103', 'V104', 'V105', 'V106', 'V107', 'V108', 'V109', 'V110', 'V111', 'V112', 'V113', 'V114', 'V115', 'V116', 'V117', 'V118', 'V119', 'V120', 'V121', 'V122', 'V123', 'V124', 'V125', 'V126', 'V127', 'V128', 'V129', 'V130', 'V131', 'V132', 'V133', 'V134', 'V135', 'V136', 'V137', 'V138', 'V139', 'V140', 'V141', 'V142', 'V143', 'V144', 'V145', 'V146', 'V147', 'V148', 'V149', 'V150', 'V151', 'V152', 'V153', 'V154', 'V155', 'V156', 'V157', 'V158', 'V159', 'V160', 'V161', 'V162', 'V163', 'V164', 'V165', 'V166', 'V167', 'V168', 'V169', 'V170', 'V171', 'V172', 'V173', 'V174', 'V175', 'V176', 'V177', 'V178', 'V179', 'V180', 'V181', 'V182', 'V183', 'V184', 'V185', 'V186', 'V187', 'V188', 'V189', 'V190', 'V191', 'V192', 'V193', 'V194', 'V195', 'V196', 'V197', 'V198', 'V199', 'V200', 'V201', 'V202', 'V203', 'V204', 'V205', 'V206', 'V207', 'V208', 'V209', 'V210', 'V211', 'V212', 'V213', 'V214', 'V215', 'V216', 'V217', 'V218', 'V219', 'V220', 'V221', 'V222', 'V223', 'V224', 'V225', 'V226', 'V227', 'V228', 'V229', 'V230', 'V231', 'V232', 'V233', 'V234', 'V235', 'V236', 'V237', 'V238', 'V239', 'V240', 'V241', 'V242', 'V243', 'V244', 'V245', 'V246', 'V247', 'V248', 'V249', 'V250', 'V251', 'V252', 'V253', 'V254', 'V255', 'V256', 'V257', 'V258', 'V259', 'V260', 'V261', 'V262', 'V263', 'V264', 'V265', 'V266', 'V267', 'V268', 'V269', 'V270', 'V271', 'V272', 'V273', 'V274', 'V275', 'V276', 'V277', 'V278', 'V279', 'V280', 'V281', 'V282', 'V283', 'V284', 'V285', 'V286', 'V287', 'V288', 'V289', 'V290', 'V291', 'V292', 'V293', 'V294', 'V295', 'V296', 'V297', 'V298', 'V299', 'V300', 'V301', 'V302', 'V303', 'V304', 'V305', 'V306', 'V307', 'V308', 'V309', 'V310', 'V311', 'V312', 'V313', 'V314', 'V315', 'V316', 'V317', 'V318', 'V319', 'V320', 'V321', 'V322', 'V323', 'V324', 'V325', 'V326', 'V327', 'V328', 'V329', 'V330', 'V331', 'V332', 'V333', 'V334', 'V335', 'V336', 'V337', 'V338', 'V339', 'id_01', 'id_02', 'id_03', 'id_04', 'id_05', 'id_06', 'id_07', 'id_08', 'id_09', 'id_10', 'id_11', 'id_12', 'id_13', 'id_14', 'id_15', 'id_16', 'id_17', 'id_18', 'id_19', 'id_20', 'id_21', 'id_22', 'id_23', 'id_24', 'id_25', 'id_26', 'id_27', 'id_28', 'id_29', 'id_30', 'id_31', 'id_32', 'id_33', 'id_34', 'id_35', 'id_36', 'id_37', 'id_38', 'DeviceType', 'DeviceInfo']
float64    399
str         31
int64        4
Name: count, dtype: int64
0
Missing Missing % Data Type
id_24 585793 99.196159 float64
id_25 585408 99.130965 float64
id_07 585385 99.127070 float64
id_08 585385 99.127070 float64
id_21 585381 99.126393 float64
id_26 585377 99.125715 float64
id_27 585371 99.124699 str
id_23 585371 99.124699 str
id_22 585371 99.124699 float64
dist2 552913 93.628374 float64
D7 551623 93.409930 float64
id_18 545427 92.360721 float64
D13 528588 89.509263 float64
D14 528353 89.469469 float64
D12 525823 89.041047 float64
id_03 524216 88.768923 float64
id_04 524216 88.768923 float64
D6 517353 87.606767 float64
id_33 517251 87.589494 str
id_10 515614 87.312290 float64
id_09 515614 87.312290 float64
D9 515614 87.312290 float64
D8 515614 87.312290 float64
id_30 512975 86.865411 str
id_32 512954 86.861855 float64
id_34 512735 86.824771 str
id_14 510496 86.445626 float64
V142 508595 86.123717 float64
V158 508595 86.123717 float64
V140 508595 86.123717 float64

6. Target Variable Analysis

Code
# Check class distribution of the target variable
df["isFraud"].value_counts()

plt.figure(figsize=(6,4))

sns.countplot(
    data=df,
    x="isFraud"
)

plt.title("Fraud Distribution")
plt.show()

Code
# Calculate fraud rate
fraud_rate = df["isFraud"].mean()*100
print(f"Fraud Rate: {fraud_rate:.2f}%")
Fraud Rate: 3.50%

7. Numerical Feature Analysis

Code
# 7. Numerical Feature Analysis

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

sns.set_theme(style="whitegrid")
Code
# Identify numerical columns
numerical_cols = df.select_dtypes(include=["int64", "float64"]).columns.tolist()

print(f"Number of numerical features: {len(numerical_cols)}")

print(numerical_cols[:50])
Number of numerical features: 403
['TransactionID', 'isFraud', 'TransactionDT', 'TransactionAmt', 'card1', 'card2', 'card3', 'card5', 'addr1', 'addr2', 'dist1', 'dist2', 'C1', 'C2', 'C3', 'C4', 'C5', 'C6', 'C7', 'C8', 'C9', 'C10', 'C11', 'C12', 'C13', 'C14', 'D1', 'D2', 'D3', 'D4', 'D5', 'D6', 'D7', 'D8', 'D9', 'D10', 'D11', 'D12', 'D13', 'D14', 'D15', 'V1', 'V2', 'V3', 'V4', 'V5', 'V6', 'V7', 'V8', 'V9']
Code
# Since TransactionID is only an identifier and isFraud is the target, exclude them from general predictor analysis:

numerical_features = [
    col for col in numerical_cols
    if col not in ["TransactionID", "isFraud"]
]

print(f"Numerical predictor features: {len(numerical_features)}")
Numerical predictor features: 401
Code
# Summary statistics for key numerical features
Code
key_numerical_features = [
    "TransactionAmt",
    "TransactionDT",
    "card1",
    "card2",
    "card3",
    "card5",
    "addr1",
    "addr2",
    "dist1",
    "dist2"
]

available_key_features = [
    col for col in key_numerical_features
    if col in df.columns
]

df[available_key_features].describe().T
count mean std min 25% 50% 75% max
TransactionAmt 590540.0 1.350272e+02 2.391625e+02 0.251 43.321 68.769 125.0 3.193739e+04
TransactionDT 590540.0 7.372311e+06 4.617224e+06 86400.000 3027057.750 7306527.500 11246620.0 1.581113e+07
card1 590540.0 9.898735e+03 4.901170e+03 1000.000 6019.000 9678.000 14184.0 1.839600e+04
card2 581607.0 3.625555e+02 1.577932e+02 100.000 214.000 361.000 512.0 6.000000e+02
card3 588975.0 1.531949e+02 1.133644e+01 100.000 150.000 150.000 150.0 2.310000e+02
card5 586281.0 1.992789e+02 4.124445e+01 100.000 166.000 226.000 226.0 2.370000e+02
addr1 524834.0 2.907338e+02 1.017411e+02 100.000 204.000 299.000 330.0 5.400000e+02
addr2 524834.0 8.680063e+01 2.690623e+00 10.000 87.000 87.000 87.0 1.020000e+02
dist1 238269.0 1.185022e+02 3.718720e+02 0.000 3.000 8.000 24.0 1.028600e+04
dist2 37627.0 2.318554e+02 5.290535e+02 0.000 7.000 37.000 206.0 1.162300e+04
Code

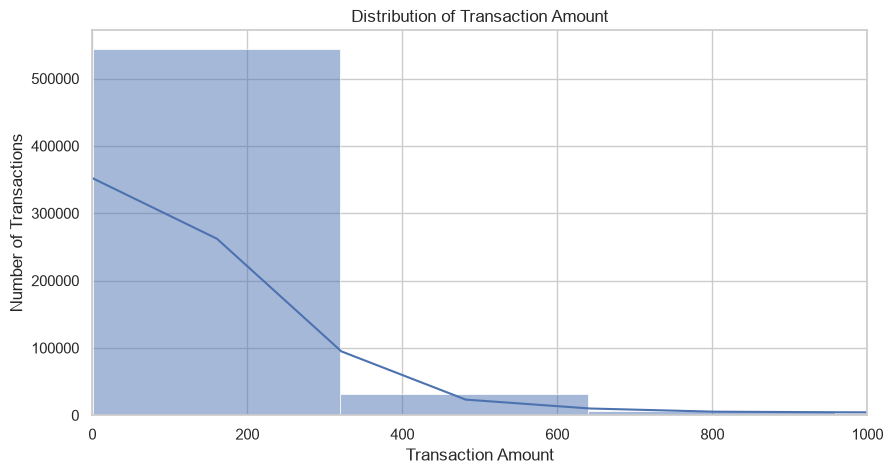

# Transaction amount distribution

plt.figure(figsize=(10, 5))

sns.histplot(
    data=df,
    x="TransactionAmt",
    bins=100,
    kde=True
)

plt.title("Distribution of Transaction Amount")
plt.xlabel("Transaction Amount")
plt.ylabel("Number of Transactions")
plt.xlim(0, 1000)

plt.show()

Most transactions are concentrated at lower monetary values, while relatively few transactions involve large amounts. The distribution of transaction amounts is highly right-skewed (positively skewed), indicating the presence of extreme values (outliers). This suggests that transformations such as logarithmic scaling may improve the performance of certain machine learning algorithms that are sensitive to skewed feature distributions.

Code

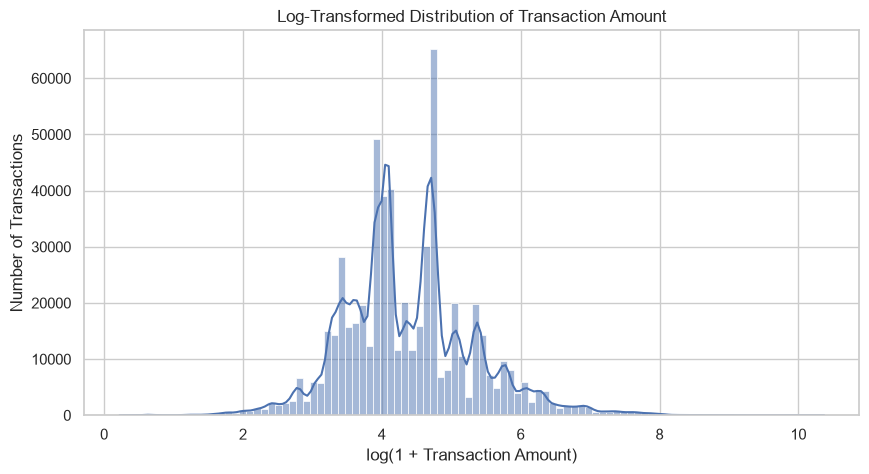

# Log-transformed transaction amount : This is useful because TransactionAmt is strongly right-skewed.

df["TransactionAmt_log"] = np.log1p(df["TransactionAmt"])

plt.figure(figsize=(10, 5))

sns.histplot(
    data=df,
    x="TransactionAmt_log",
    bins=100,
    kde=True
)

plt.title("Log-Transformed Distribution of Transaction Amount")
plt.xlabel("log(1 + Transaction Amount)")
plt.ylabel("Number of Transactions")

plt.show()

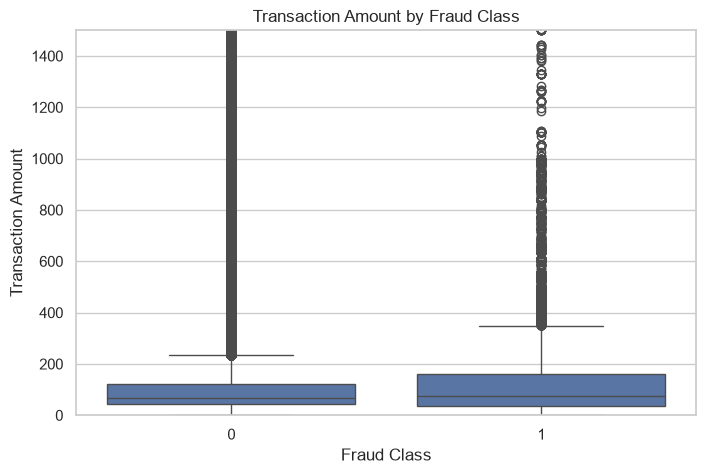

Transaction amount by fraud class

Code
plt.figure(figsize=(8, 5))

sns.boxplot(
    data=df,
    x="isFraud",
    y="TransactionAmt"
)

plt.title("Transaction Amount by Fraud Class")
plt.xlabel("Fraud Class")
plt.ylabel("Transaction Amount")
plt.ylim(0, 1500)

plt.show()

Code
df.groupby("isFraud")["TransactionAmt"].agg(
    count="count",
    mean="mean",
    median="median",
    std="std",
    minimum="min",
    maximum="max"
).round(2)
count mean median std minimum maximum
isFraud
0 569877 134.51 68.5 239.40 0.25 31937.39
1 20663 149.24 75.0 232.21 0.29 5191.00

Fraud rate by transaction amount band

Code
amount_bins = [
    0,
    25,
    50,
    100,
    200,
    500,
    1000,
    np.inf
]

amount_labels = [
    "0–25",
    "25–50",
    "50–100",
    "100–200",
    "200–500",
    "500–1000",
    "1000+"
]

df["TransactionAmt_band"] = pd.cut(
    df["TransactionAmt"],
    bins=amount_bins,
    labels=amount_labels,
    include_lowest=True
)

amount_fraud_summary = (
    df.groupby("TransactionAmt_band", observed=False)
      .agg(
          transaction_count=("TransactionID", "count"),
          fraud_count=("isFraud", "sum"),
          fraud_rate=("isFraud", "mean")
      )
      .reset_index()
)

amount_fraud_summary["fraud_rate_pct"] = (
    amount_fraud_summary["fraud_rate"] * 100
)

amount_fraud_summary
TransactionAmt_band transaction_count fraud_count fraud_rate fraud_rate_pct
0 0–25 50829 3150 0.061972 6.197250
1 25–50 153695 4683 0.030469 3.046944
2 50–100 164095 4788 0.029178 2.917822
3 100–200 128041 3899 0.030451 3.045118
4 200–500 71001 3135 0.044154 4.415431
5 500–1000 15612 829 0.053100 5.310018
6 1000+ 7267 179 0.024632 2.463190
Code

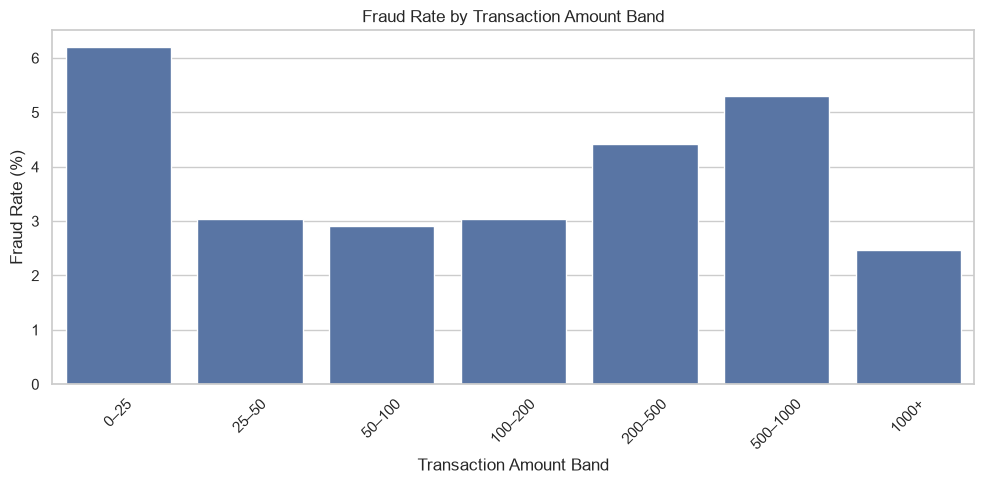

plt.figure(figsize=(10, 5))

sns.barplot(
    data=amount_fraud_summary,
    x="TransactionAmt_band",
    y="fraud_rate_pct"
)

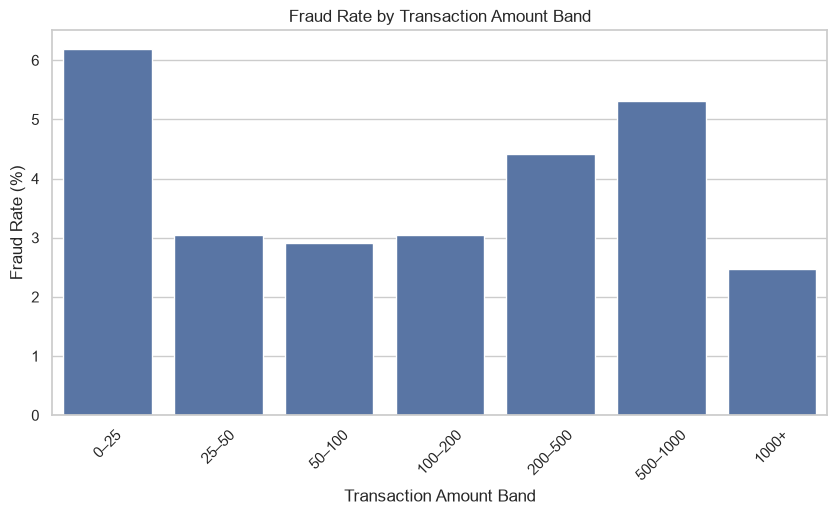

plt.title("Fraud Rate by Transaction Amount Band")
plt.xlabel("Transaction Amount Band")
plt.ylabel("Fraud Rate (%)")
plt.xticks(rotation=45)

plt.show()

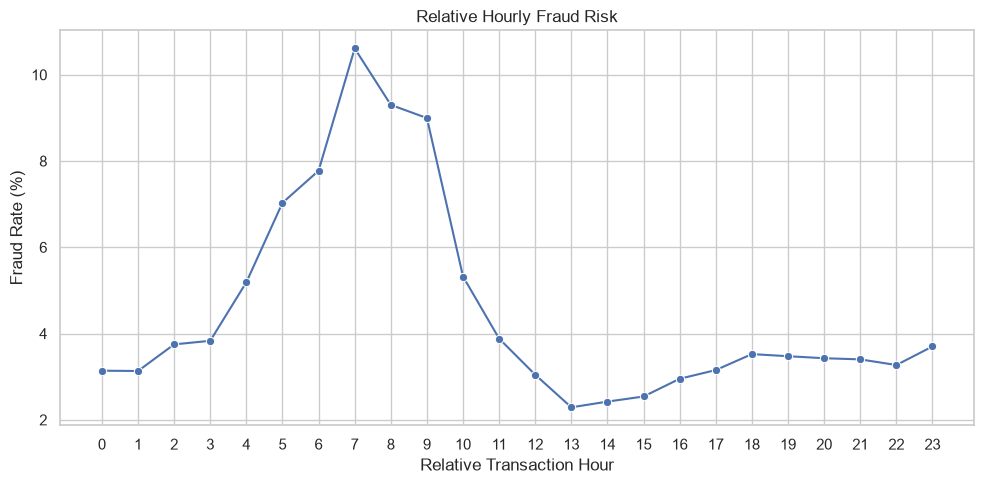

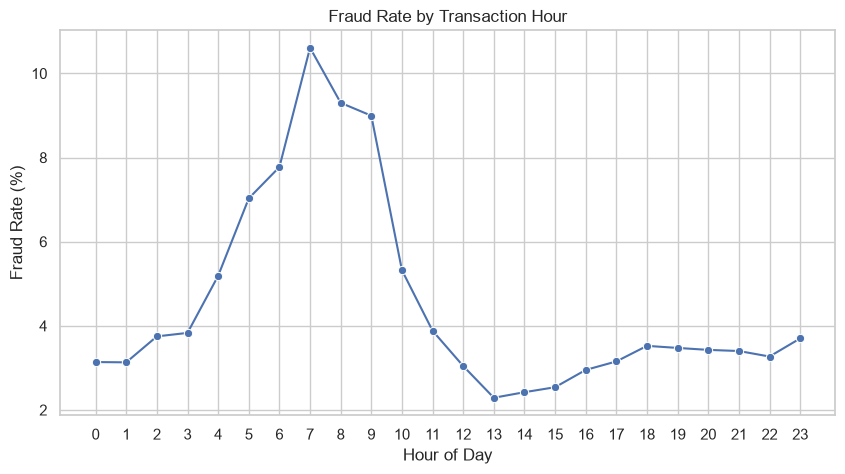

Transaction time analysis

Code
# TransactionDT is measured in seconds from a reference point, not as a standard timestamp. Convert it into elapsed days and hours.

df["TransactionDay"] = df["TransactionDT"] / (60 * 60 * 24)
df["TransactionHour"] = (df["TransactionDT"] // 3600) % 24

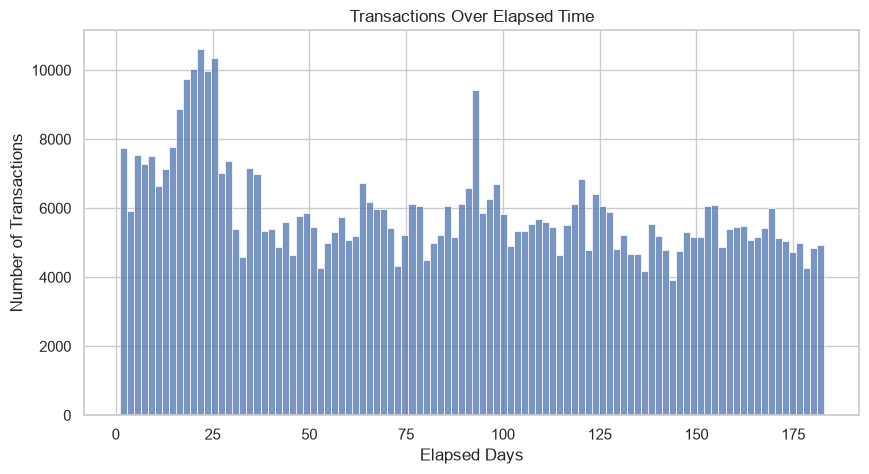

Transactions over elapsed time

Code
plt.figure(figsize=(10, 5))

sns.histplot(
    data=df,
    x="TransactionDay",
    bins=100
)

plt.title("Transactions Over Elapsed Time")
plt.xlabel("Elapsed Days")
plt.ylabel("Number of Transactions")

plt.show()

Fraud rate by hour

Code
hourly_fraud = (
    df.groupby("TransactionHour")
      .agg(
          transaction_count=("TransactionID", "count"),
          fraud_count=("isFraud", "sum"),
          fraud_rate=("isFraud", "mean")
      )
      .reset_index()
)

hourly_fraud["fraud_rate_pct"] = hourly_fraud["fraud_rate"] * 100

hourly_fraud.head()
TransactionHour transaction_count fraud_count fraud_rate fraud_rate_pct
0 0 37795 1186 0.031380 3.137981
1 1 32797 1027 0.031314 3.131384
2 2 26732 1002 0.037483 3.748317
3 3 20802 797 0.038314 3.831362
4 4 14839 770 0.051890 5.189029
Code
plt.figure(figsize=(10, 5))

sns.lineplot(
    data=hourly_fraud,
    x="TransactionHour",
    y="fraud_rate_pct",
    marker="o"
)

plt.title("Fraud Rate by Transaction Hour")
plt.xlabel("Hour of Day")
plt.ylabel("Fraud Rate (%)")
plt.xticks(range(0, 24))

plt.show()

Distance-feature analysis

Code
distance_features = [
    col for col in ["dist1", "dist2"]
    if col in df.columns
]

df.groupby("isFraud")[distance_features].median().round(2)
dist1 dist2
isFraud
0 8.0 36.0
1 10.0 49.0
Code

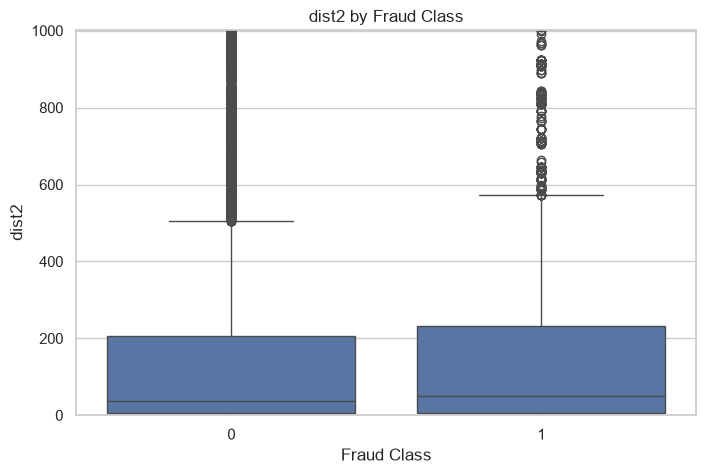

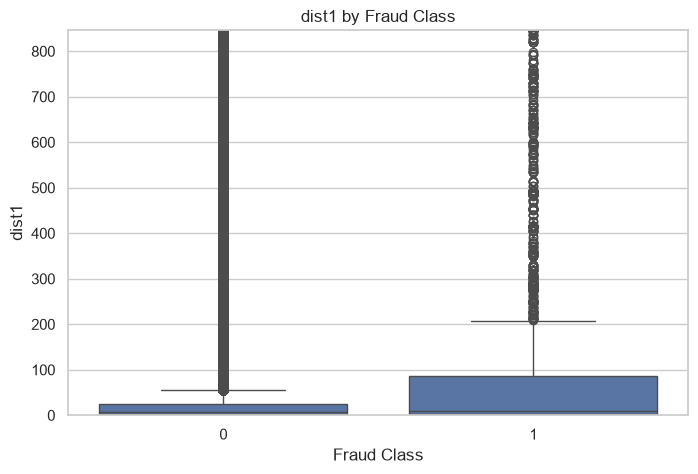

for feature in distance_features:
    plt.figure(figsize=(8, 5))

    sns.boxplot(
        data=df,
        x="isFraud",
        y=feature
    )

    plt.title(f"{feature} by Fraud Class")
    plt.xlabel("Fraud Class")
    plt.ylabel(feature)

    upper_limit = df[feature].quantile(0.95)

    if pd.notna(upper_limit):
        plt.ylim(0, upper_limit)

    plt.show()

C-feature comparison

Code
# The C1–C14 columns are count-like variables. Compare their medians by fraud class:

c_features = [
    col for col in df.columns
    if col.startswith("C") and col[1:].isdigit()
]

c_summary = (
    df.groupby("isFraud")[c_features]
      .median()
      .T
      .rename(columns={
          0: "Non-Fraud Median",
          1: "Fraud Median"
      })
)

c_summary["Absolute Difference"] = (
    c_summary["Fraud Median"] -
    c_summary["Non-Fraud Median"]
).abs()

c_summary.sort_values(
    "Absolute Difference",
    ascending=False
).head(14)
isFraud Non-Fraud Median Fraud Median Absolute Difference
C13 3.0 1.0 2.0
C1 1.0 2.0 1.0
C2 1.0 2.0 1.0
C4 0.0 1.0 1.0
C8 0.0 1.0 1.0
C9 1.0 0.0 1.0
C10 0.0 1.0 1.0
C11 1.0 2.0 1.0
C3 0.0 0.0 0.0
C5 0.0 0.0 0.0
C6 1.0 1.0 0.0
C7 0.0 0.0 0.0
C12 0.0 0.0 0.0
C14 1.0 1.0 0.0
Code

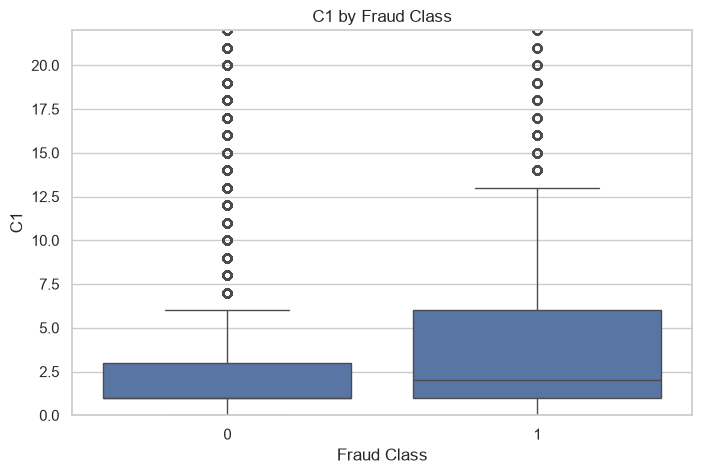

top_c_features = (
    c_summary.sort_values(
        "Absolute Difference",
        ascending=False
    )
    .head(6)
    .index
    .tolist()
)

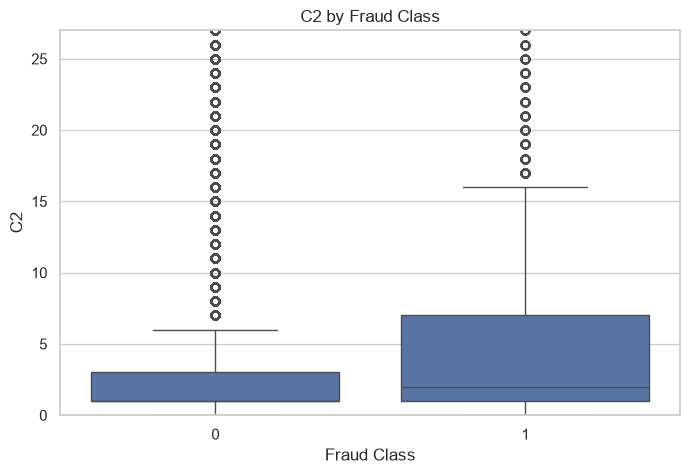

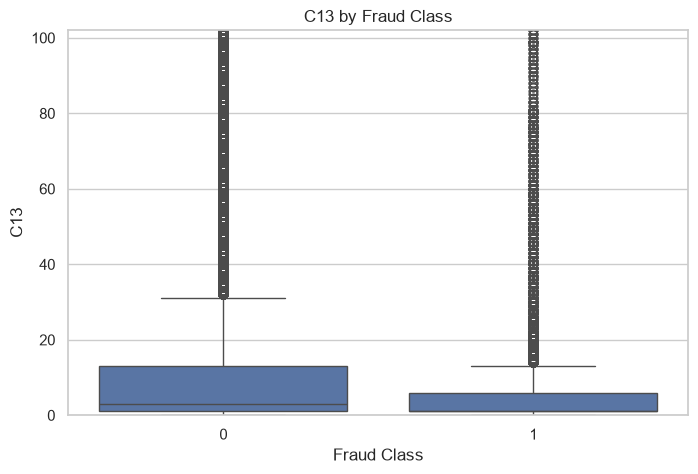

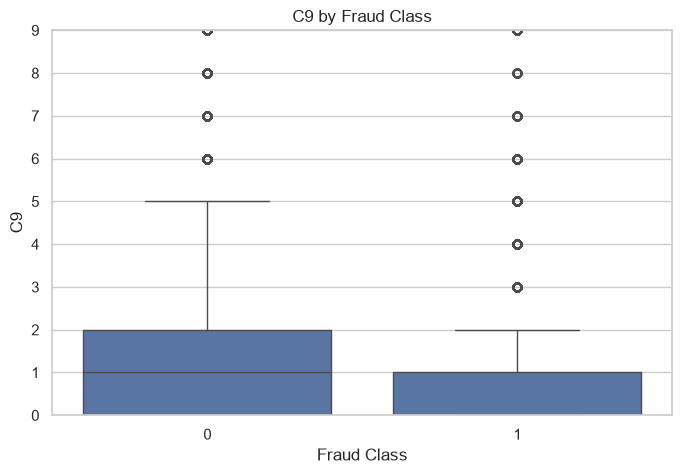

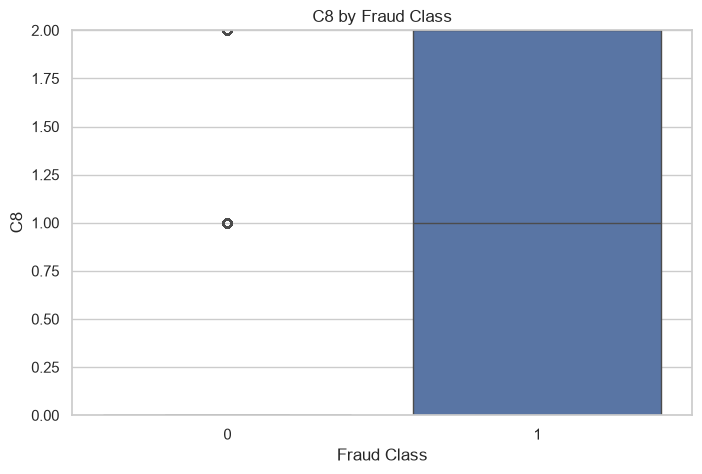

for feature in top_c_features:
    plt.figure(figsize=(8, 5))

    sns.boxplot(
        data=df,
        x="isFraud",
        y=feature
    )

    plt.title(f"{feature} by Fraud Class")
    plt.xlabel("Fraud Class")
    plt.ylabel(feature)

    upper_limit = df[feature].quantile(0.95)

    if pd.notna(upper_limit):
        plt.ylim(0, upper_limit)

    plt.show()

D-feature comparison

Code
d_features = [
    col for col in df.columns
    if col.startswith("D") and col[1:].isdigit()
]

d_summary = (
    df.groupby("isFraud")[d_features]
      .median()
      .T
      .rename(columns={
          0: "Non-Fraud Median",
          1: "Fraud Median"
      })
)

d_summary["Absolute Difference"] = (
    d_summary["Fraud Median"] -
    d_summary["Non-Fraud Median"]
).abs()

d_summary.sort_values(
    "Absolute Difference",
    ascending=False
).head(15)
isFraud Non-Fraud Median Fraud Median Absolute Difference
D2 100.000000 16.000000 84.000000
D15 56.000000 1.000000 55.000000
D8 50.583332 2.666666 47.916666
D11 44.000000 7.000000 37.000000
D4 28.000000 1.000000 27.000000
D10 18.000000 0.000000 18.000000
D5 10.000000 0.000000 10.000000
D3 8.000000 1.000000 7.000000
D1 4.000000 0.000000 4.000000
D9 0.666666 0.625000 0.041666
D6 0.000000 0.000000 0.000000
D7 0.000000 0.000000 0.000000
D12 0.000000 0.000000 0.000000
D13 0.000000 0.000000 0.000000
D14 0.000000 0.000000 0.000000
Code
# Since there are hundreds of numerical variables, we calculate correlations only with the target:

numeric_corr_with_fraud = (
    df[numerical_cols]
    .corr(numeric_only=True)["isFraud"]
    .drop("isFraud")
    .sort_values(key=abs, ascending=False)
)

numeric_corr_with_fraud.head(20)
V257    0.383060
V246    0.366878
V244    0.364129
V242    0.360590
V201    0.328005
V200    0.318783
V189    0.308219
V188    0.303582
V258    0.297151
V45     0.281832
V158    0.278066
V156    0.275952
V149    0.273282
V228    0.268861
V44     0.260376
V86     0.251828
V87     0.251737
V170    0.249794
V147    0.242894
V52     0.239469
Name: isFraud, dtype: float64
Code

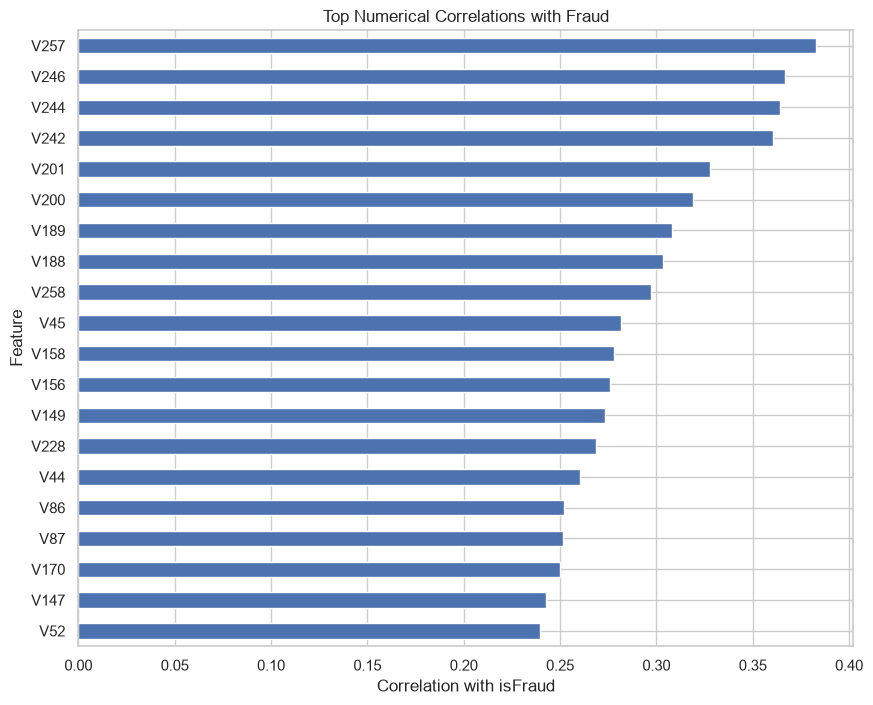

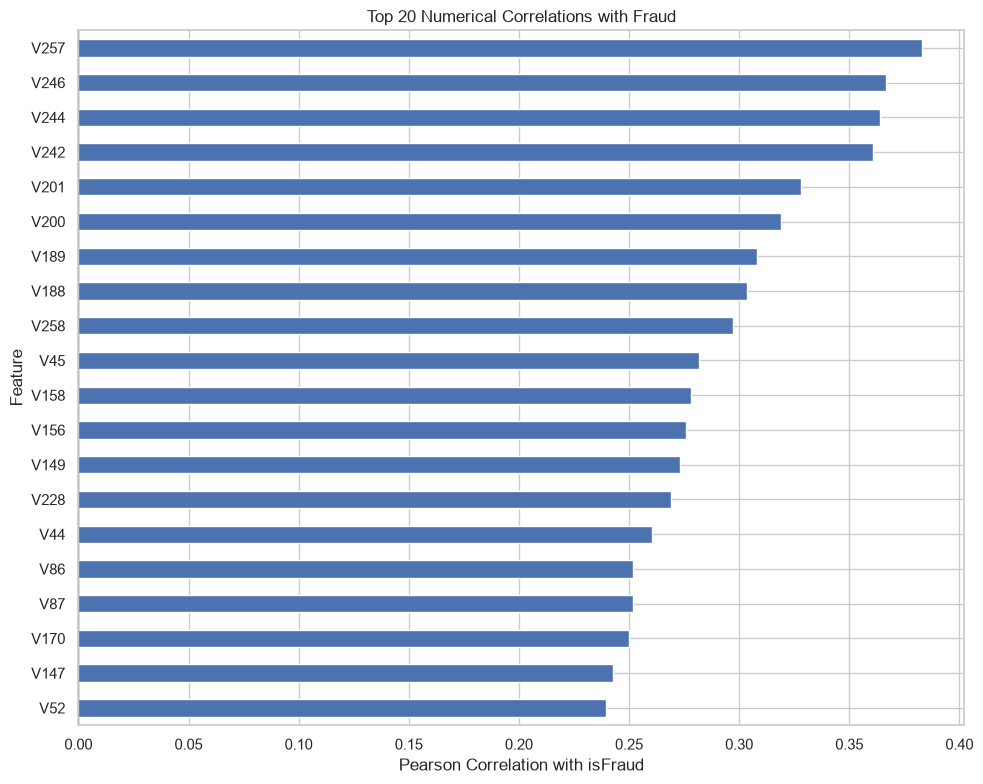

# Plot the top 20:
top_corr = numeric_corr_with_fraud.head(20).sort_values()

plt.figure(figsize=(10, 8))

top_corr.plot(kind="barh")

plt.title("Top Numerical Correlations with Fraud")
plt.xlabel("Correlation with isFraud")
plt.ylabel("Feature")

plt.show()

Numerical Feature Analysis Findings

  • The dataset contains 403 numerical variables (401 predictor variables after excluding TransactionID and the target variable isFraud), indicating a high-dimensional feature space suitable for advanced machine learning models.

  • The TransactionAmt variable is highly right-skewed, with most transactions involving relatively small amounts and a small number of very large transactions. This distribution contains several extreme outliers.

  • Because of this strong positive skewness, a logarithmic transformation (log1p) was applied to TransactionAmt, producing a more balanced distribution that is more appropriate for many machine learning algorithms.

  • The presence of outliers suggests that robust preprocessing techniques, such as logarithmic transformation or robust scaling, may improve model stability while preserving potentially informative fraudulent transactions.

  • Overall, the numerical analysis shows that the dataset contains substantial variation in transaction values and many continuous variables that can provide useful predictive information after appropriate preprocessing.

8. Categorical Features

8.1 Identify categorical features

Code
categorical_cols = df.select_dtypes(include=["object"]).columns.tolist()

print(f"Number of categorical features: {len(categorical_cols)}")
print(categorical_cols)
Number of categorical features: 31
['ProductCD', 'card4', 'card6', 'P_emaildomain', 'R_emaildomain', 'M1', 'M2', 'M3', 'M4', 'M5', 'M6', 'M7', 'M8', 'M9', 'id_12', 'id_15', 'id_16', 'id_23', 'id_27', 'id_28', 'id_29', 'id_30', 'id_31', 'id_33', 'id_34', 'id_35', 'id_36', 'id_37', 'id_38', 'DeviceType', 'DeviceInfo']

8.2 Missing values in categorical features

Code
categorical_missing = (
    df[categorical_cols]
    .isnull()
    .mean()
    .sort_values(ascending=False)
    * 100
)

categorical_missing = categorical_missing.reset_index()
categorical_missing.columns = ["Feature", "Missing (%)"]

categorical_missing.head(15)
Feature Missing (%)
0 id_27 99.124699
1 id_23 99.124699
2 id_33 87.589494
3 id_30 86.865411
4 id_34 86.824771
5 DeviceInfo 79.905510
6 id_16 78.098012
7 R_emaildomain 76.751617
8 id_31 76.245132
9 DeviceType 76.155722
10 id_29 76.127273
11 id_28 76.127273
12 id_38 76.126088
13 id_37 76.126088
14 id_36 76.126088

8.3 Cardinality (number of unique values)

Code
categorical_cardinality = (
    df[categorical_cols]
    .nunique()
    .sort_values(ascending=False)
)

categorical_cardinality
DeviceInfo       1786
id_33             260
id_31             130
id_30              75
R_emaildomain      60
P_emaildomain      59
ProductCD           5
id_34               4
card4               4
card6               4
id_15               3
id_23               3
M4                  3
M2                  2
DeviceType          2
id_38               2
id_37               2
id_36               2
id_35               2
M1                  2
M3                  2
id_29               2
id_27               2
id_16               2
id_12               2
M9                  2
M8                  2
M7                  2
M6                  2
M5                  2
id_28               2
dtype: int64

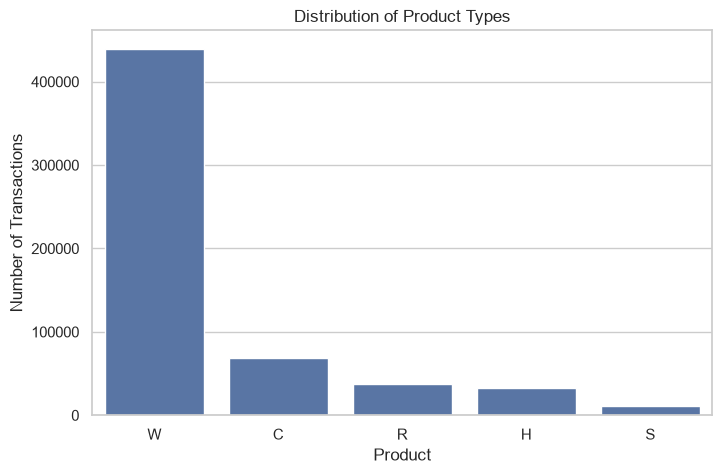

8.4 Product Type (ProductCD)

Code
plt.figure(figsize=(8,5))

sns.countplot(
    data=df,
    x="ProductCD",
    order=df["ProductCD"].value_counts().index
)

plt.title("Distribution of Product Types")
plt.xlabel("Product")
plt.ylabel("Number of Transactions")

plt.show()

Fraud by product:
Code
product_fraud = (
    df.groupby("ProductCD")
      .agg(
          transaction_count=("TransactionID","count"),
          fraud_rate=("isFraud","mean")
      )
      .reset_index()
)

product_fraud["fraud_rate"] *= 100

product_fraud
ProductCD transaction_count fraud_rate
0 C 68519 11.687269
1 H 33024 4.766231
2 R 37699 3.782594
3 S 11628 5.899553
4 W 439670 2.039939
Code

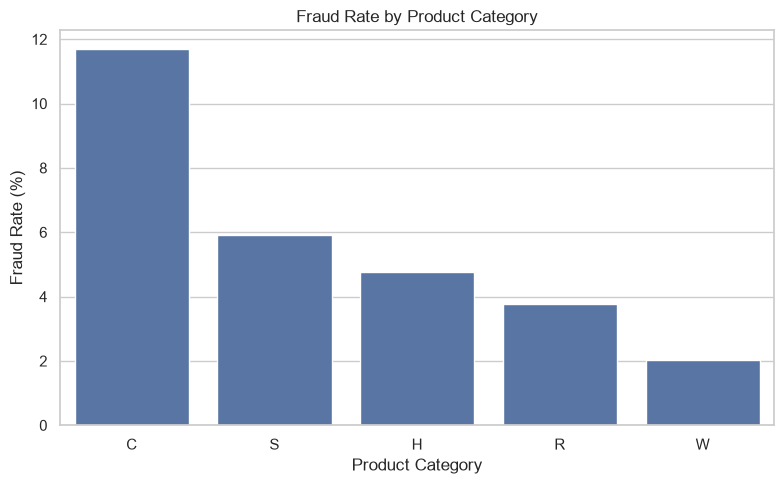

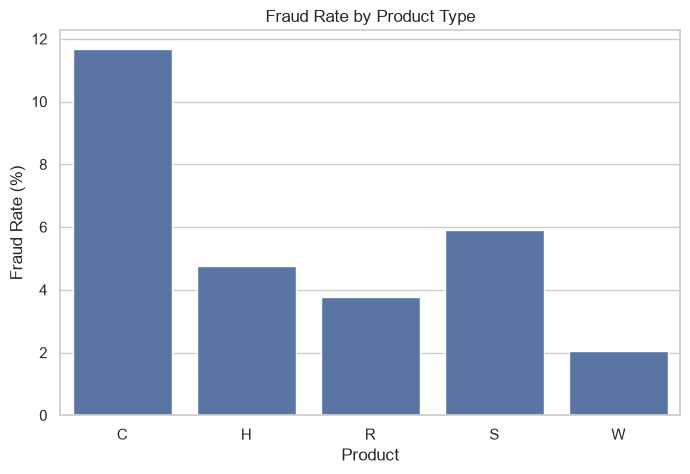

plt.figure(figsize=(8,5))

sns.barplot(
    data=product_fraud,
    x="ProductCD",
    y="fraud_rate"
)

plt.title("Fraud Rate by Product Type")
plt.xlabel("Product")
plt.ylabel("Fraud Rate (%)")

plt.show()

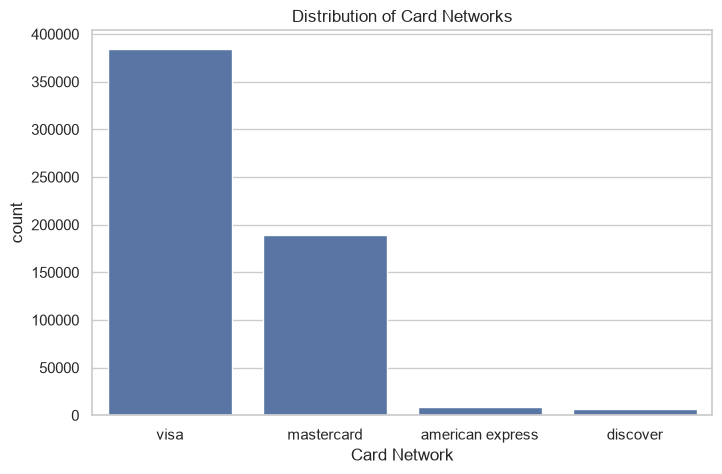

8.5 Card Network (card4)

Code
plt.figure(figsize=(8,5))

sns.countplot(
    data=df,
    x="card4",
    order=df["card4"].value_counts().index
)

plt.title("Distribution of Card Networks")
plt.xlabel("Card Network")

plt.show()

Fraud rate:
Code
card4_summary = (
    df.groupby("card4")
      .agg(
          transaction_count=("TransactionID","count"),
          fraud_rate=("isFraud","mean")
      )
      .reset_index()
)

card4_summary["fraud_rate"] *= 100

card4_summary
card4 transaction_count fraud_rate
0 american express 8328 2.869837
1 discover 6651 7.728161
2 mastercard 189217 3.433095
3 visa 384767 3.475610
Code

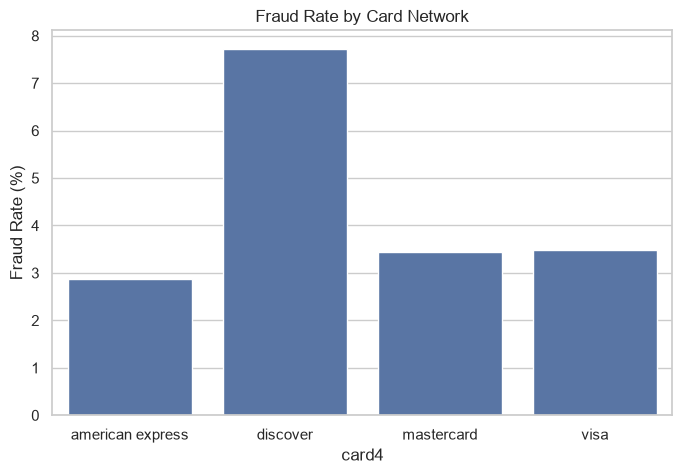

plt.figure(figsize=(8,5))

sns.barplot(
    data=card4_summary,
    x="card4",
    y="fraud_rate"
)

plt.title("Fraud Rate by Card Network")
plt.ylabel("Fraud Rate (%)")

plt.show()

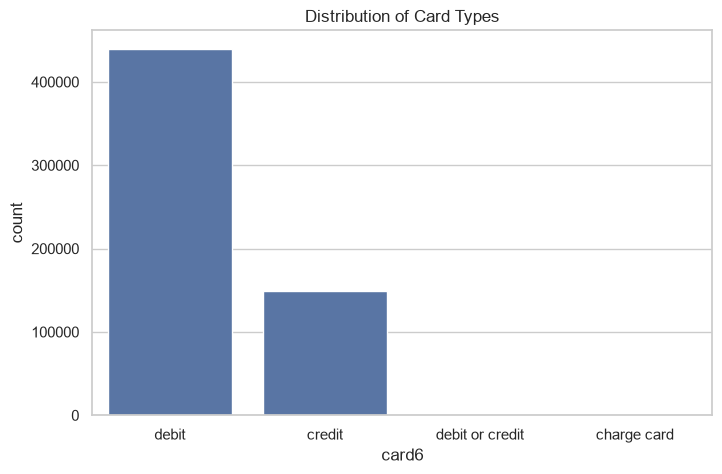

8.6 Card Type (card6)

Code
plt.figure(figsize=(8,5))

sns.countplot(
    data=df,
    x="card6",
    order=df["card6"].value_counts().index
)

plt.title("Distribution of Card Types")

plt.show()

Fraud rate:

Code
card6_summary = (
    df.groupby("card6")
      .agg(
          transaction_count=("TransactionID","count"),
          fraud_rate=("isFraud","mean")
      )
      .reset_index()
)

card6_summary["fraud_rate"] *= 100

card6_summary
card6 transaction_count fraud_rate
0 charge card 15 0.000000
1 credit 148986 6.678480
2 debit 439938 2.426251
3 debit or credit 30 0.000000
Code

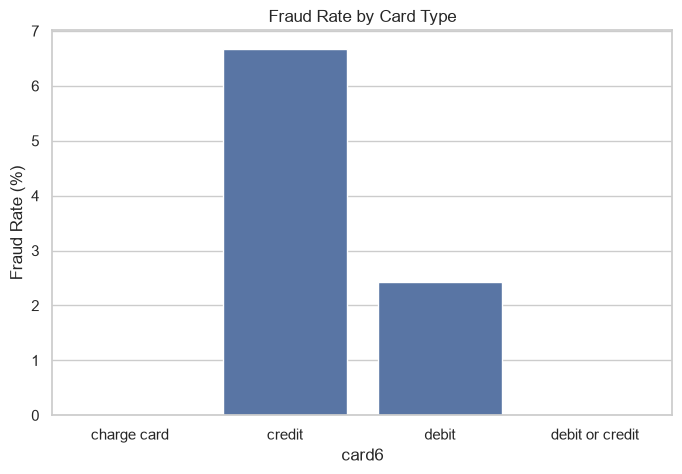

plt.figure(figsize=(8,5))

sns.barplot(
    data=card6_summary,
    x="card6",
    y="fraud_rate"
)

plt.title("Fraud Rate by Card Type")
plt.ylabel("Fraud Rate (%)")

plt.show()

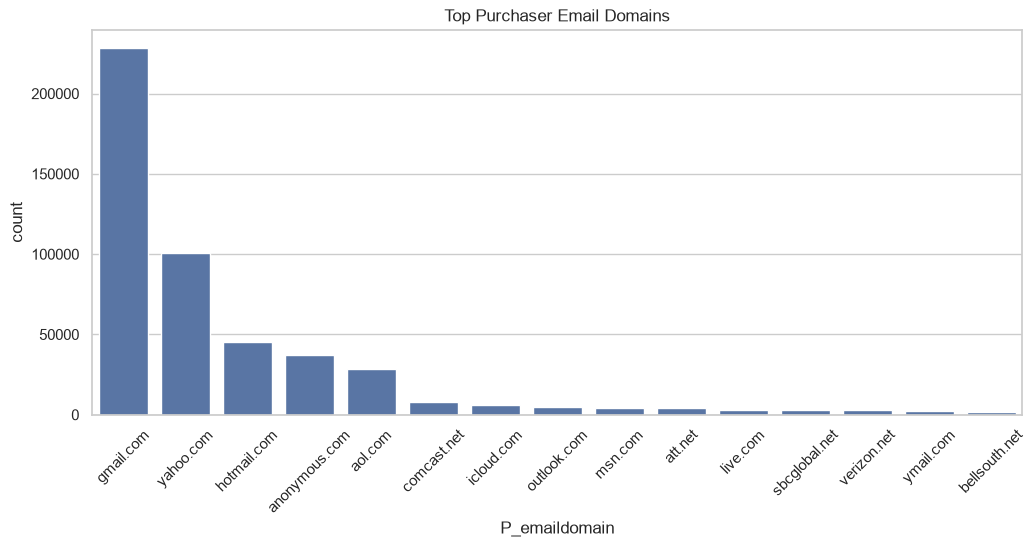

8.7 Purchaser Email Domain

Code
# Display only the 15 most frequent domains.
top_domains = (
    df["P_emaildomain"]
    .value_counts()
    .head(15)
    .index
)

plt.figure(figsize=(12,5))

sns.countplot(
    data=df[df["P_emaildomain"].isin(top_domains)],
    x="P_emaildomain",
    order=top_domains
)

plt.xticks(rotation=45)

plt.title("Top Purchaser Email Domains")

plt.show()

Fraud rate:
Code
email_summary = (
    df.groupby("P_emaildomain")
      .agg(
          transaction_count=("TransactionID","count"),
          fraud_rate=("isFraud","mean")
      )
      .query("transaction_count > 500")
      .sort_values("fraud_rate", ascending=False)
)

email_summary["fraud_rate"] *= 100

email_summary.head(15)
transaction_count fraud_rate
P_emaildomain
mail.com 559 18.962433
outlook.com 5096 9.458399
live.com.mx 749 5.473965
hotmail.com 45250 5.295028
gmail.com 228355 4.354185
icloud.com 6267 3.143450
comcast.net 7888 3.118661
charter.net 816 3.063725
bellsouth.net 1909 2.776323
live.com 3041 2.762249
anonymous.com 36998 2.321747
yahoo.com 100934 2.275745
msn.com 4092 2.199413
aol.com 28289 2.181060
earthlink.net 514 2.140078

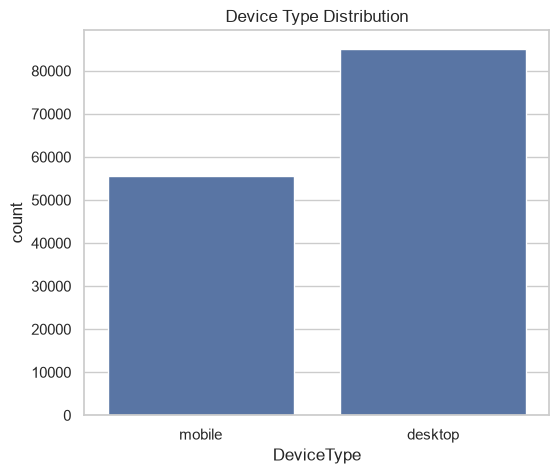

8.8 Device Type

Code
plt.figure(figsize=(6,5))

sns.countplot(
    data=df,
    x="DeviceType"
)

plt.title("Device Type Distribution")

plt.show()

Fraud rate:
Code
device_summary = (
    df.groupby("DeviceType")
      .agg(
          transaction_count=("TransactionID","count"),
          fraud_rate=("isFraud","mean")
      )
      .reset_index()
)

device_summary["fraud_rate"] *= 100

device_summary
DeviceType transaction_count fraud_rate
0 desktop 85165 6.521458
1 mobile 55645 10.166232

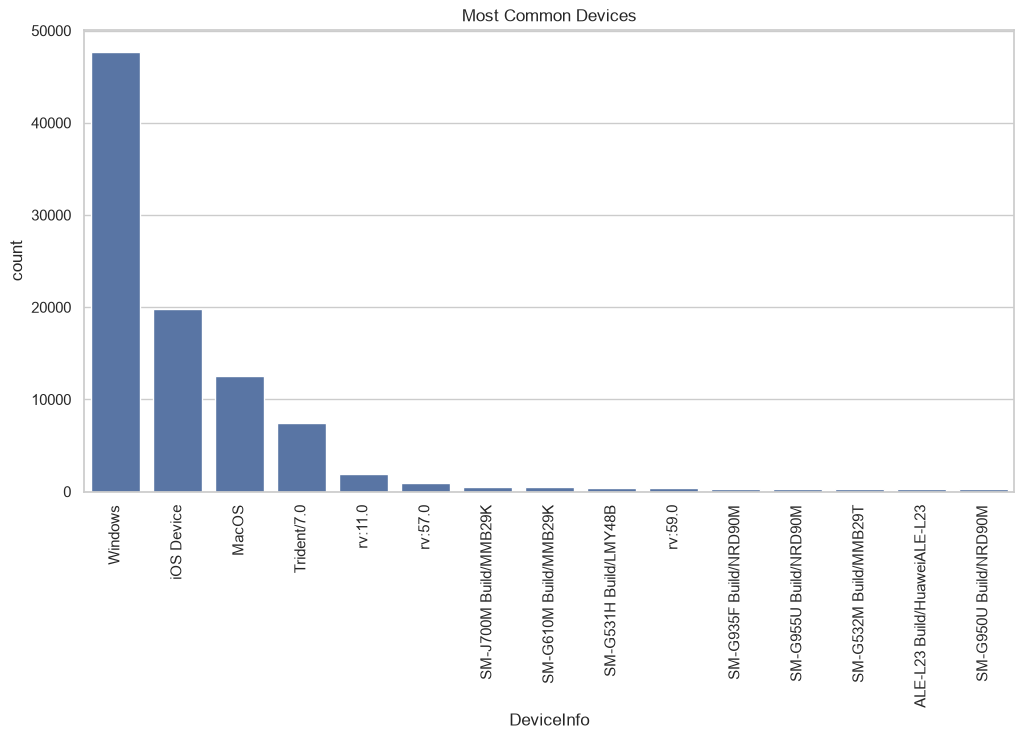

8.9 Device Information

Display the most common devices.

Code
top_devices = (
    df["DeviceInfo"]
    .value_counts()
    .head(15)
    .index
)

plt.figure(figsize=(12,6))

sns.countplot(
    data=df[df["DeviceInfo"].isin(top_devices)],
    x="DeviceInfo",
    order=top_devices
)

plt.xticks(rotation=90)

plt.title("Most Common Devices")

plt.show()

8.10 Summary Table

Code
summary = pd.DataFrame({
    "Feature": categorical_cols,
    "Unique Values": [df[col].nunique() for col in categorical_cols],
    "Missing (%)": [df[col].isna().mean()*100 for col in categorical_cols]
})

summary.sort_values("Missing (%)", ascending=False)
Feature Unique Values Missing (%)
18 id_27 2 99.124699
17 id_23 3 99.124699
23 id_33 260 87.589494
21 id_30 75 86.865411
24 id_34 4 86.824771
30 DeviceInfo 1786 79.905510
16 id_16 2 78.098012
4 R_emaildomain 60 76.751617
22 id_31 130 76.245132
29 DeviceType 2 76.155722
20 id_29 2 76.127273
19 id_28 2 76.127273
28 id_38 2 76.126088
27 id_37 2 76.126088
26 id_36 2 76.126088
25 id_35 2 76.126088
15 id_15 3 76.126088
14 id_12 2 75.576083
9 M5 2 59.349409
11 M7 2 58.635317
13 M9 2 58.633115
12 M8 2 58.633115
8 M4 3 47.658753
7 M3 2 45.907136
6 M2 2 45.907136
5 M1 2 45.907136
10 M6 2 28.678836
3 P_emaildomain 59 15.994852
1 card4 4 0.267044
2 card6 4 0.266028
0 ProductCD 5 0.000000

Categorical Feature Analysis Findings

  • The dataset contains 31 categorical variables, representing product categories, payment methods, email domains, device characteristics, and identity-related attributes.

  • Several categorical variables exhibit high cardinality, particularly DeviceInfo and email domain features, indicating a large variety of unique values that may require encoding techniques such as frequency encoding or target encoding.

  • Identity-related variables contain substantial missing values, suggesting that not all transactions include complete device or identity information.

  • Product categories, payment card characteristics, and device information display different fraud rates, indicating that these variables may contribute meaningful predictive information for fraud detection.

  • Overall, categorical variables are expected to play a significant role in the predictive performance of the fraud detection models after appropriate preprocessing and encoding.

9. Missing Values

9.1 Overall Missing Values

Code
# Total missing values in the dataset

missing_summary = pd.DataFrame({
    "Missing Values": df.isnull().sum(),
    "Missing (%)": (df.isnull().mean() * 100).round(2)
})

missing_summary = (
    missing_summary
    .sort_values("Missing (%)", ascending=False)
)

missing_summary.head(20)
Missing Values Missing (%)
id_24 585793 99.20
id_26 585377 99.13
id_21 585381 99.13
id_25 585408 99.13
id_07 585385 99.13
id_08 585385 99.13
id_27 585371 99.12
id_23 585371 99.12
id_22 585371 99.12
dist2 552913 93.63
D7 551623 93.41
id_18 545427 92.36
D13 528588 89.51
D14 528353 89.47
D12 525823 89.04
id_04 524216 88.77
id_03 524216 88.77
D6 517353 87.61
id_33 517251 87.59
D9 515614 87.31

9.2 Missing Value Distribution

Code
plt.figure(figsize=(12,8))

missing_summary.head(20).sort_values("Missing (%)").plot(
    kind="barh",
    y="Missing (%)",
    legend=False
)

plt.title("Top 20 Features with Highest Percentage of Missing Values")
plt.xlabel("Missing Percentage (%)")
plt.ylabel("Feature")

plt.show()
<Figure size 1200x800 with 0 Axes>

9.3 Missing Value Categories

Code
missing_ranges = pd.DataFrame({
    "Category": [
        "0%",
        "0–25%",
        "25–50%",
        "50–75%",
        "75–100%"
    ],
    "Number of Features": [
        (missing_summary["Missing (%)"] == 0).sum(),
        ((missing_summary["Missing (%)"] > 0) &
         (missing_summary["Missing (%)"] <= 25)).sum(),
        ((missing_summary["Missing (%)"] > 25) &
         (missing_summary["Missing (%)"] <= 50)).sum(),
        ((missing_summary["Missing (%)"] > 50) &
         (missing_summary["Missing (%)"] <= 75)).sum(),
        (missing_summary["Missing (%)"] > 75).sum()
    ]
})

missing_ranges
Category Number of Features
0 0% 56
1 0–25% 130
2 25–50% 38
3 50–75% 6
4 75–100% 208

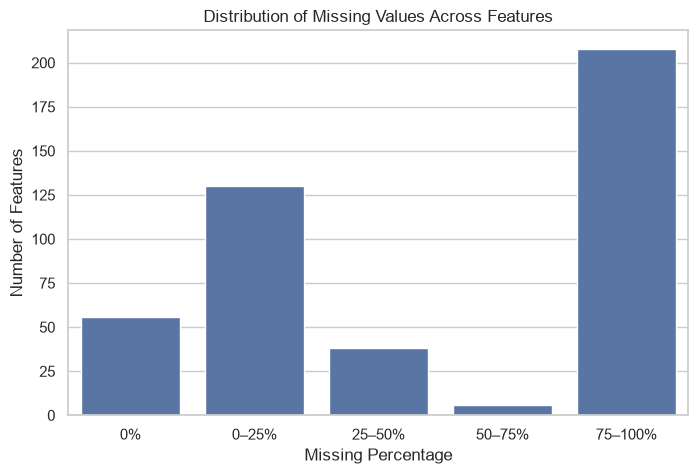

9.4 Plot Missing Value Categories

Code
plt.figure(figsize=(8,5))

sns.barplot(
    data=missing_ranges,
    x="Category",
    y="Number of Features"
)

plt.title("Distribution of Missing Values Across Features")
plt.xlabel("Missing Percentage")
plt.ylabel("Number of Features")

plt.show()

9.5 Missing Values by Data Type

Code
missing_by_type = pd.DataFrame({
    "Data Type": df.dtypes.astype(str),
    "Missing (%)": df.isnull().mean() * 100
})

missing_by_type.groupby("Data Type")["Missing (%)"].mean().round(2)
Data Type
category     0.00
float64     43.99
int64        0.00
str         61.97
Name: Missing (%), dtype: float64

9.6 Features with More Than 90% Missing Values

Code
high_missing = missing_summary[
    missing_summary["Missing (%)"] > 90
]

print(f"Number of features with >90% missing values: {len(high_missing)}")

high_missing
Number of features with >90% missing values: 12
Missing Values Missing (%)
id_24 585793 99.20
id_26 585377 99.13
id_21 585381 99.13
id_25 585408 99.13
id_07 585385 99.13
id_08 585385 99.13
id_27 585371 99.12
id_23 585371 99.12
id_22 585371 99.12
dist2 552913 93.63
D7 551623 93.41
id_18 545427 92.36

9.7 Missing Values in Important Features

Code
important_features = [
    "TransactionAmt",
    "ProductCD",
    "card4",
    "card6",
    "P_emaildomain",
    "R_emaildomain",
    "DeviceType",
    "DeviceInfo"
]

important_missing = pd.DataFrame({
    "Missing (%)":
    (df[important_features]
        .isnull()
        .mean() * 100).round(2)
})

important_missing
Missing (%)
TransactionAmt 0.00
ProductCD 0.00
card4 0.27
card6 0.27
P_emaildomain 15.99
R_emaildomain 76.75
DeviceType 76.16
DeviceInfo 79.91

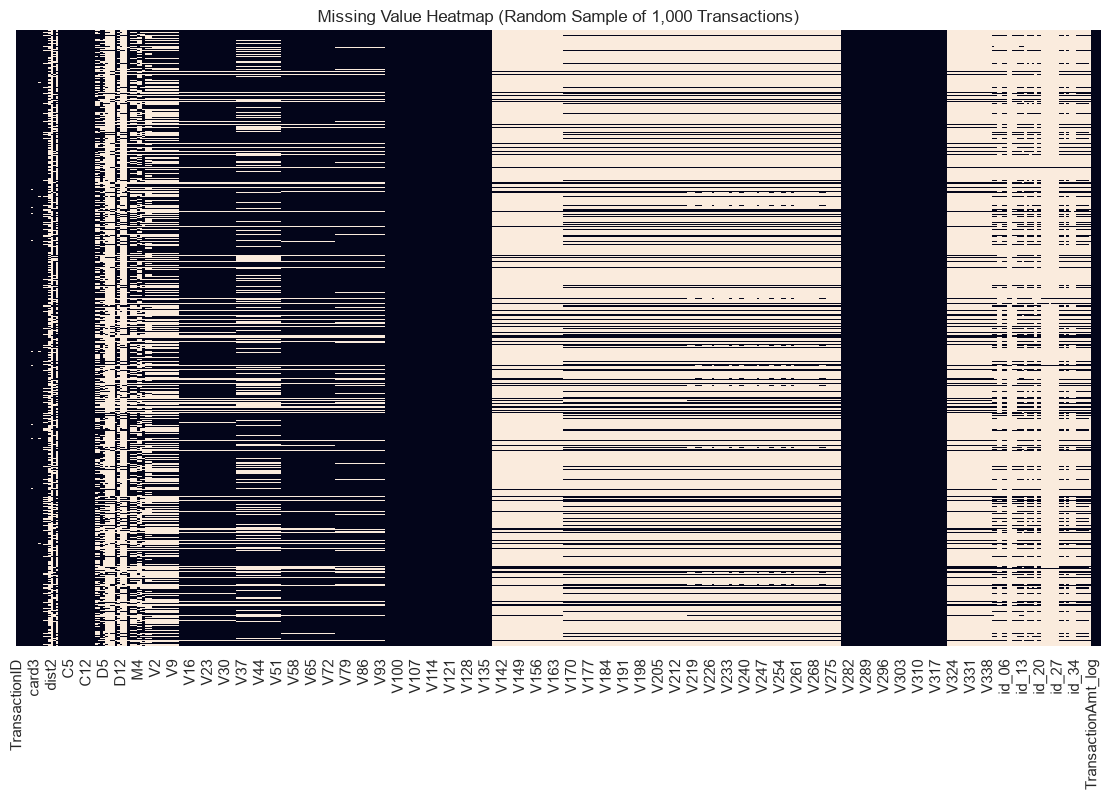

9.8 Missing Value Heatmap (Sample)

Because the dataset has 590,540 rows, plotting the entire dataset would be extremely slow. Instead, use a random sample.

Code
plt.figure(figsize=(14,8))

sns.heatmap(
    df.sample(1000, random_state=42).isnull(),
    cbar=False,
    yticklabels=False
)

plt.title("Missing Value Heatmap (Random Sample of 1,000 Transactions)")

plt.show()

Missing Value Analysis Findings

  • The IEEE-CIS Fraud Detection dataset contains a substantial number of missing values across many features, particularly among identity-related variables.

  • Several features exhibit more than 75% missing values, indicating that missing data handling will be a critical step during preprocessing.

  • Important transaction-related variables such as TransactionAmt and ProductCD contain few or no missing values, making them reliable predictors.

  • Identity and device-related attributes (DeviceInfo, DeviceType, and various id_ features) contain significantly higher proportions of missing values, suggesting that not all transactions include complete identity information.

  • Appropriate missing value treatment strategies, including imputation and feature selection, will be applied before model development to maximize predictive performance while minimizing information loss.

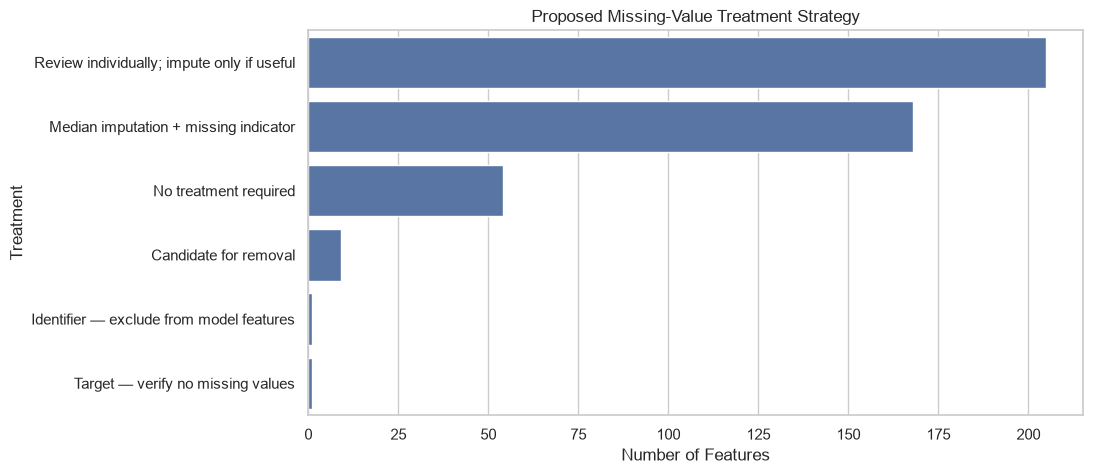

10. Missing Values Treatment

Code
# Proposed missing-value treatment strategy

missing_strategy = pd.DataFrame({
    "Feature": df.columns,
    "Data Type": df.dtypes.astype(str).values,
    "Missing Count": df.isna().sum().values,
    "Missing (%)": (df.isna().mean() * 100).round(2).values,
    "Unique Values": df.nunique(dropna=True).values
})

10.1. Define the treatment rules

Code
def assign_missing_strategy(row):
    missing_pct = row["Missing (%)"]
    data_type = row["Data Type"]
    feature = row["Feature"]

    # Never treat the target or identifier as ordinary predictors
    if feature == "isFraud":
        return "Target — verify no missing values"

    if feature == "TransactionID":
        return "Identifier — exclude from model features"

    # Proposed removal threshold
    if missing_pct > 95:
        return "Candidate for removal"

    # No missing values
    if missing_pct == 0:
        return "No treatment required"

    # Categorical variables
    if data_type in ["object", "string", "category"]:
        return "Impute with 'Missing' category"

    # Numerical variables
    if missing_pct <= 50:
        return "Median imputation + missing indicator"

    # High but not extreme missingness
    return "Review individually; impute only if useful"
Code
# Apply rules

missing_strategy["Proposed Treatment"] = missing_strategy.apply(
    assign_missing_strategy,
    axis=1
)

10.2. Display the full strategy table

Code
missing_strategy.sort_values(
    "Missing (%)",
    ascending=False
).head(50)
Feature Data Type Missing Count Missing (%) Unique Values Proposed Treatment
417 id_24 float64 585793 99.20 12 Candidate for removal
419 id_26 float64 585377 99.13 95 Candidate for removal
414 id_21 float64 585381 99.13 490 Candidate for removal
418 id_25 float64 585408 99.13 341 Candidate for removal
400 id_07 float64 585385 99.13 84 Candidate for removal
401 id_08 float64 585385 99.13 94 Candidate for removal
420 id_27 str 585371 99.12 2 Candidate for removal
416 id_23 str 585371 99.12 3 Candidate for removal
415 id_22 float64 585371 99.12 25 Candidate for removal
14 dist2 float64 552913 93.63 1751 Review individually; impute only if useful
37 D7 float64 551623 93.41 597 Review individually; impute only if useful
411 id_18 float64 545427 92.36 18 Review individually; impute only if useful
43 D13 float64 528588 89.51 577 Review individually; impute only if useful
44 D14 float64 528353 89.47 802 Review individually; impute only if useful
42 D12 float64 525823 89.04 635 Review individually; impute only if useful
397 id_04 float64 524216 88.77 15 Review individually; impute only if useful
396 id_03 float64 524216 88.77 24 Review individually; impute only if useful
36 D6 float64 517353 87.61 829 Review individually; impute only if useful
426 id_33 str 517251 87.59 260 Review individually; impute only if useful
39 D9 float64 515614 87.31 24 Review individually; impute only if useful
402 id_09 float64 515614 87.31 46 Review individually; impute only if useful
403 id_10 float64 515614 87.31 62 Review individually; impute only if useful
38 D8 float64 515614 87.31 12353 Review individually; impute only if useful
423 id_30 str 512975 86.87 75 Review individually; impute only if useful
425 id_32 float64 512954 86.86 4 Review individually; impute only if useful
427 id_34 str 512735 86.82 4 Review individually; impute only if useful
407 id_14 float64 510496 86.45 25 Review individually; impute only if useful
204 V150 float64 508589 86.12 1996 Review individually; impute only if useful
205 V151 float64 508589 86.12 56 Review individually; impute only if useful
219 V165 float64 508589 86.12 2547 Review individually; impute only if useful
203 V149 float64 508595 86.12 21 Review individually; impute only if useful
202 V148 float64 508595 86.12 21 Review individually; impute only if useful
201 V147 float64 508595 86.12 27 Review individually; impute only if useful
200 V146 float64 508595 86.12 25 Review individually; impute only if useful
199 V145 float64 508589 86.12 260 Review individually; impute only if useful
197 V143 float64 508589 86.12 870 Review individually; impute only if useful
196 V142 float64 508595 86.12 10 Review individually; impute only if useful
195 V141 float64 508595 86.12 6 Review individually; impute only if useful
198 V144 float64 508589 86.12 63 Review individually; impute only if useful
212 V158 float64 508595 86.12 25 Review individually; impute only if useful
206 V152 float64 508589 86.12 39 Review individually; impute only if useful
207 V153 float64 508595 86.12 19 Review individually; impute only if useful
208 V154 float64 508595 86.12 19 Review individually; impute only if useful
209 V155 float64 508595 86.12 25 Review individually; impute only if useful
210 V156 float64 508595 86.12 25 Review individually; impute only if useful
211 V157 float64 508595 86.12 25 Review individually; impute only if useful
193 V139 float64 508595 86.12 34 Review individually; impute only if useful
213 V159 float64 508589 86.12 6663 Review individually; impute only if useful
214 V160 float64 508589 86.12 9621 Review individually; impute only if useful
215 V161 float64 508595 86.12 79 Review individually; impute only if useful

10.3. Columns proposed for removal

Code
columns_to_remove = missing_strategy.loc[
    missing_strategy["Proposed Treatment"] == "Candidate for removal",
    "Feature"
].tolist()

print(f"Number of candidate features for removal: {len(columns_to_remove)}")
print(columns_to_remove)
Number of candidate features for removal: 9
['id_07', 'id_08', 'id_21', 'id_22', 'id_23', 'id_24', 'id_25', 'id_26', 'id_27']

10.4. Categorical columns proposed for imputation

Code
categorical_columns_to_impute = missing_strategy.loc[
    missing_strategy["Proposed Treatment"] == "Impute with 'Missing' category",
    "Feature"
].tolist()

print(
    f"Categorical features proposed for imputation: "
    f"{len(categorical_columns_to_impute)}"
)

print(categorical_columns_to_impute)
Categorical features proposed for imputation: 0
[]

10.5. Numerical columns proposed for median imputation

Code
numerical_columns_to_impute = missing_strategy.loc[
    missing_strategy["Proposed Treatment"] ==
    "Median imputation + missing indicator",
    "Feature"
].tolist()

print(
    f"Numerical features proposed for median imputation: "
    f"{len(numerical_columns_to_impute)}"
)

print(numerical_columns_to_impute)
Numerical features proposed for median imputation: 168
['card2', 'card3', 'card4', 'card5', 'card6', 'addr1', 'addr2', 'P_emaildomain', 'D1', 'D2', 'D3', 'D4', 'D10', 'D11', 'D15', 'M1', 'M2', 'M3', 'M4', 'M6', 'V1', 'V2', 'V3', 'V4', 'V5', 'V6', 'V7', 'V8', 'V9', 'V10', 'V11', 'V12', 'V13', 'V14', 'V15', 'V16', 'V17', 'V18', 'V19', 'V20', 'V21', 'V22', 'V23', 'V24', 'V25', 'V26', 'V27', 'V28', 'V29', 'V30', 'V31', 'V32', 'V33', 'V34', 'V35', 'V36', 'V37', 'V38', 'V39', 'V40', 'V41', 'V42', 'V43', 'V44', 'V45', 'V46', 'V47', 'V48', 'V49', 'V50', 'V51', 'V52', 'V53', 'V54', 'V55', 'V56', 'V57', 'V58', 'V59', 'V60', 'V61', 'V62', 'V63', 'V64', 'V65', 'V66', 'V67', 'V68', 'V69', 'V70', 'V71', 'V72', 'V73', 'V74', 'V75', 'V76', 'V77', 'V78', 'V79', 'V80', 'V81', 'V82', 'V83', 'V84', 'V85', 'V86', 'V87', 'V88', 'V89', 'V90', 'V91', 'V92', 'V93', 'V94', 'V95', 'V96', 'V97', 'V98', 'V99', 'V100', 'V101', 'V102', 'V103', 'V104', 'V105', 'V106', 'V107', 'V108', 'V109', 'V110', 'V111', 'V112', 'V113', 'V114', 'V115', 'V116', 'V117', 'V118', 'V119', 'V120', 'V121', 'V122', 'V123', 'V124', 'V125', 'V126', 'V127', 'V128', 'V129', 'V130', 'V131', 'V132', 'V133', 'V134', 'V135', 'V136', 'V137', 'V281', 'V282', 'V283', 'V288', 'V289', 'V296', 'V300', 'V301', 'V313', 'V314', 'V315']

10.6. Features requiring manual review

Code
columns_to_review = missing_strategy.loc[
    missing_strategy["Proposed Treatment"] ==
    "Review individually; impute only if useful",
    "Feature"
].tolist()

print(f"Features requiring individual review: {len(columns_to_review)}")
print(columns_to_review)
Features requiring individual review: 205
['dist1', 'dist2', 'R_emaildomain', 'D5', 'D6', 'D7', 'D8', 'D9', 'D12', 'D13', 'D14', 'M5', 'M7', 'M8', 'M9', 'V138', 'V139', 'V140', 'V141', 'V142', 'V143', 'V144', 'V145', 'V146', 'V147', 'V148', 'V149', 'V150', 'V151', 'V152', 'V153', 'V154', 'V155', 'V156', 'V157', 'V158', 'V159', 'V160', 'V161', 'V162', 'V163', 'V164', 'V165', 'V166', 'V167', 'V168', 'V169', 'V170', 'V171', 'V172', 'V173', 'V174', 'V175', 'V176', 'V177', 'V178', 'V179', 'V180', 'V181', 'V182', 'V183', 'V184', 'V185', 'V186', 'V187', 'V188', 'V189', 'V190', 'V191', 'V192', 'V193', 'V194', 'V195', 'V196', 'V197', 'V198', 'V199', 'V200', 'V201', 'V202', 'V203', 'V204', 'V205', 'V206', 'V207', 'V208', 'V209', 'V210', 'V211', 'V212', 'V213', 'V214', 'V215', 'V216', 'V217', 'V218', 'V219', 'V220', 'V221', 'V222', 'V223', 'V224', 'V225', 'V226', 'V227', 'V228', 'V229', 'V230', 'V231', 'V232', 'V233', 'V234', 'V235', 'V236', 'V237', 'V238', 'V239', 'V240', 'V241', 'V242', 'V243', 'V244', 'V245', 'V246', 'V247', 'V248', 'V249', 'V250', 'V251', 'V252', 'V253', 'V254', 'V255', 'V256', 'V257', 'V258', 'V259', 'V260', 'V261', 'V262', 'V263', 'V264', 'V265', 'V266', 'V267', 'V268', 'V269', 'V270', 'V271', 'V272', 'V273', 'V274', 'V275', 'V276', 'V277', 'V278', 'V322', 'V323', 'V324', 'V325', 'V326', 'V327', 'V328', 'V329', 'V330', 'V331', 'V332', 'V333', 'V334', 'V335', 'V336', 'V337', 'V338', 'V339', 'id_01', 'id_02', 'id_03', 'id_04', 'id_05', 'id_06', 'id_09', 'id_10', 'id_11', 'id_12', 'id_13', 'id_14', 'id_15', 'id_16', 'id_17', 'id_18', 'id_19', 'id_20', 'id_28', 'id_29', 'id_30', 'id_31', 'id_32', 'id_33', 'id_34', 'id_35', 'id_36', 'id_37', 'id_38', 'DeviceType', 'DeviceInfo']

10.7. Summary of proposed decisions

Code
strategy_summary = (
    missing_strategy["Proposed Treatment"]
    .value_counts()
    .rename_axis("Proposed Treatment")
    .reset_index(name="Number of Features")
)

strategy_summary
Proposed Treatment Number of Features
0 Review individually; impute only if useful 205
1 Median imputation + missing indicator 168
2 No treatment required 54
3 Candidate for removal 9
4 Identifier — exclude from model features 1
5 Target — verify no missing values 1
Code
plt.figure(figsize=(10, 5))

sns.barplot(
    data=strategy_summary,
    x="Number of Features",
    y="Proposed Treatment"
)

plt.title("Proposed Missing-Value Treatment Strategy")
plt.xlabel("Number of Features")
plt.ylabel("Treatment")

plt.show()

10.8. Decision table for report

Code
decision_table = missing_strategy[
    missing_strategy["Missing (%)"] > 0
][
    [
        "Feature",
        "Data Type",
        "Missing Count",
        "Missing (%)",
        "Unique Values",
        "Proposed Treatment"
    ]
].sort_values(
    ["Proposed Treatment", "Missing (%)"],
    ascending=[True, False]
)

decision_table.head(50)
Feature Data Type Missing Count Missing (%) Unique Values Proposed Treatment
417 id_24 float64 585793 99.20 12 Candidate for removal
400 id_07 float64 585385 99.13 84 Candidate for removal
401 id_08 float64 585385 99.13 94 Candidate for removal
414 id_21 float64 585381 99.13 490 Candidate for removal
418 id_25 float64 585408 99.13 341 Candidate for removal
419 id_26 float64 585377 99.13 95 Candidate for removal
415 id_22 float64 585371 99.12 25 Candidate for removal
416 id_23 str 585371 99.12 3 Candidate for removal
420 id_27 str 585371 99.12 2 Candidate for removal
49 M4 str 281444 47.66 3 Median imputation + missing indicator
32 D2 float64 280797 47.55 641 Median imputation + missing indicator
41 D11 float64 279287 47.29 676 Median imputation + missing indicator
55 V1 float64 279287 47.29 2 Median imputation + missing indicator
56 V2 float64 279287 47.29 9 Median imputation + missing indicator
57 V3 float64 279287 47.29 10 Median imputation + missing indicator
58 V4 float64 279287 47.29 7 Median imputation + missing indicator
59 V5 float64 279287 47.29 7 Median imputation + missing indicator
60 V6 float64 279287 47.29 10 Median imputation + missing indicator
61 V7 float64 279287 47.29 10 Median imputation + missing indicator
62 V8 float64 279287 47.29 9 Median imputation + missing indicator
63 V9 float64 279287 47.29 9 Median imputation + missing indicator
64 V10 float64 279287 47.29 5 Median imputation + missing indicator
65 V11 float64 279287 47.29 6 Median imputation + missing indicator
46 M1 str 271100 45.91 2 Median imputation + missing indicator
47 M2 str 271100 45.91 2 Median imputation + missing indicator
48 M3 str 271100 45.91 2 Median imputation + missing indicator
33 D3 float64 262878 44.51 649 Median imputation + missing indicator
51 M6 str 169360 28.68 2 Median imputation + missing indicator
89 V35 float64 168969 28.61 4 Median imputation + missing indicator
90 V36 float64 168969 28.61 6 Median imputation + missing indicator
91 V37 float64 168969 28.61 55 Median imputation + missing indicator
92 V38 float64 168969 28.61 55 Median imputation + missing indicator
93 V39 float64 168969 28.61 16 Median imputation + missing indicator
94 V40 float64 168969 28.61 18 Median imputation + missing indicator
95 V41 float64 168969 28.61 2 Median imputation + missing indicator
96 V42 float64 168969 28.61 9 Median imputation + missing indicator
97 V43 float64 168969 28.61 9 Median imputation + missing indicator
98 V44 float64 168969 28.61 49 Median imputation + missing indicator
99 V45 float64 168969 28.61 49 Median imputation + missing indicator
100 V46 float64 168969 28.61 7 Median imputation + missing indicator
101 V47 float64 168969 28.61 9 Median imputation + missing indicator
102 V48 float64 168969 28.61 6 Median imputation + missing indicator
103 V49 float64 168969 28.61 6 Median imputation + missing indicator
104 V50 float64 168969 28.61 6 Median imputation + missing indicator
105 V51 float64 168969 28.61 7 Median imputation + missing indicator
106 V52 float64 168969 28.61 9 Median imputation + missing indicator
34 D4 float64 168922 28.60 808 Median imputation + missing indicator
15 P_emaildomain str 94456 15.99 59 Median imputation + missing indicator
129 V75 float64 89164 15.10 5 Median imputation + missing indicator
130 V76 float64 89164 15.10 7 Median imputation + missing indicator

Proposed Missing-Value Treatment

Features with more than 95% missing observations were identified as candidates for removal because their limited coverage may not provide sufficient information for reliable modelling. This threshold is treated as an initial screening rule rather than an automatic deletion criterion.

Categorical variables with missing observations will generally receive an explicit Missing category, preserving the possibility that absence of information itself carries predictive value. Numerical features with moderate missingness will generally be imputed using the training-set median and supplemented with binary missingness indicators.

Features with high, but not extreme, missingness will be reviewed individually using predictive importance, business relevance, and validation performance before a final decision is made.

11. Correlation Analysis

11.1 Identify numerical predictors

Code
# Identify numerical columns

numerical_cols = df.select_dtypes(include=np.number).columns.tolist()

numerical_predictors = [
    col for col in numerical_cols
    if col not in ["TransactionID", "isFraud"]
]

print(f"Numerical columns: {len(numerical_cols)}")
print(f"Numerical predictors: {len(numerical_predictors)}")
Numerical columns: 406
Numerical predictors: 404

11.2 Correlation of numerical features with fraud

Because isFraud is binary, its Pearson correlation with a numerical feature is equivalent to the point-biserial correlation.

Code
# Pearson correlation between numerical variables and the fraud target

correlation_with_fraud = (
    df[numerical_predictors + ["isFraud"]]
    .corr(method="pearson")["isFraud"]
    .drop("isFraud")
    .dropna()
    .sort_values(key=abs, ascending=False)
)

correlation_with_fraud.head(20)
V257    0.383060
V246    0.366878
V244    0.364129
V242    0.360590
V201    0.328005
V200    0.318783
V189    0.308219
V188    0.303582
V258    0.297151
V45     0.281832
V158    0.278066
V156    0.275952
V149    0.273282
V228    0.268861
V44     0.260376
V86     0.251828
V87     0.251737
V170    0.249794
V147    0.242894
V52     0.239469
Name: isFraud, dtype: float64

11.3 Table of strongest correlations

Code
top_correlations = (
    correlation_with_fraud
    .head(20)
    .reset_index()
)

top_correlations.columns = [
    "Feature",
    "Correlation with isFraud"
]

top_correlations["Absolute Correlation"] = (
    top_correlations["Correlation with isFraud"].abs()
)

top_correlations
Feature Correlation with isFraud Absolute Correlation
0 V257 0.383060 0.383060
1 V246 0.366878 0.366878
2 V244 0.364129 0.364129
3 V242 0.360590 0.360590
4 V201 0.328005 0.328005
5 V200 0.318783 0.318783
6 V189 0.308219 0.308219
7 V188 0.303582 0.303582
8 V258 0.297151 0.297151
9 V45 0.281832 0.281832
10 V158 0.278066 0.278066
11 V156 0.275952 0.275952
12 V149 0.273282 0.273282
13 V228 0.268861 0.268861
14 V44 0.260376 0.260376
15 V86 0.251828 0.251828
16 V87 0.251737 0.251737
17 V170 0.249794 0.249794
18 V147 0.242894 0.242894
19 V52 0.239469 0.239469

11.4 Plot the top correlations with fraud

Code
top_corr_plot = (
    correlation_with_fraud
    .head(20)
    .sort_values()
)

plt.figure(figsize=(10, 8))

top_corr_plot.plot(kind="barh")

plt.title("Top 20 Numerical Correlations with Fraud")
plt.xlabel("Pearson Correlation with isFraud")
plt.ylabel("Feature")
plt.axvline(0, linewidth=1)
plt.tight_layout()

plt.show()

A positive value means higher feature values tend to be associated with fraud. A negative value means higher values tend to be associated with legitimate transactions.

11.5 Separate positive and negative correlations

Code
strongest_positive = (
    correlation_with_fraud
    .sort_values(ascending=False)
    .head(10)
    .reset_index()
)

strongest_positive.columns = [
    "Feature",
    "Correlation"
]

strongest_negative = (
    correlation_with_fraud
    .sort_values()
    .head(10)
    .reset_index()
)

strongest_negative.columns = [
    "Feature",
    "Correlation"
]

print("Strongest positive correlations:")
display(strongest_positive)

print("Strongest negative correlations:")
display(strongest_negative)
Strongest positive correlations:
Feature Correlation
0 V257 0.383060
1 V246 0.366878
2 V244 0.364129
3 V242 0.360590
4 V201 0.328005
5 V200 0.318783
6 V189 0.308219
7 V188 0.303582
8 V258 0.297151
9 V45 0.281832
Strongest negative correlations:
Feature Correlation
0 D8 -0.142636
1 D7 -0.127199
2 id_01 -0.120099
3 V48 -0.115786
4 V49 -0.110920
5 V90 -0.110168
6 V29 -0.107852
7 V91 -0.105453
8 V69 -0.104521
9 V30 -0.103088

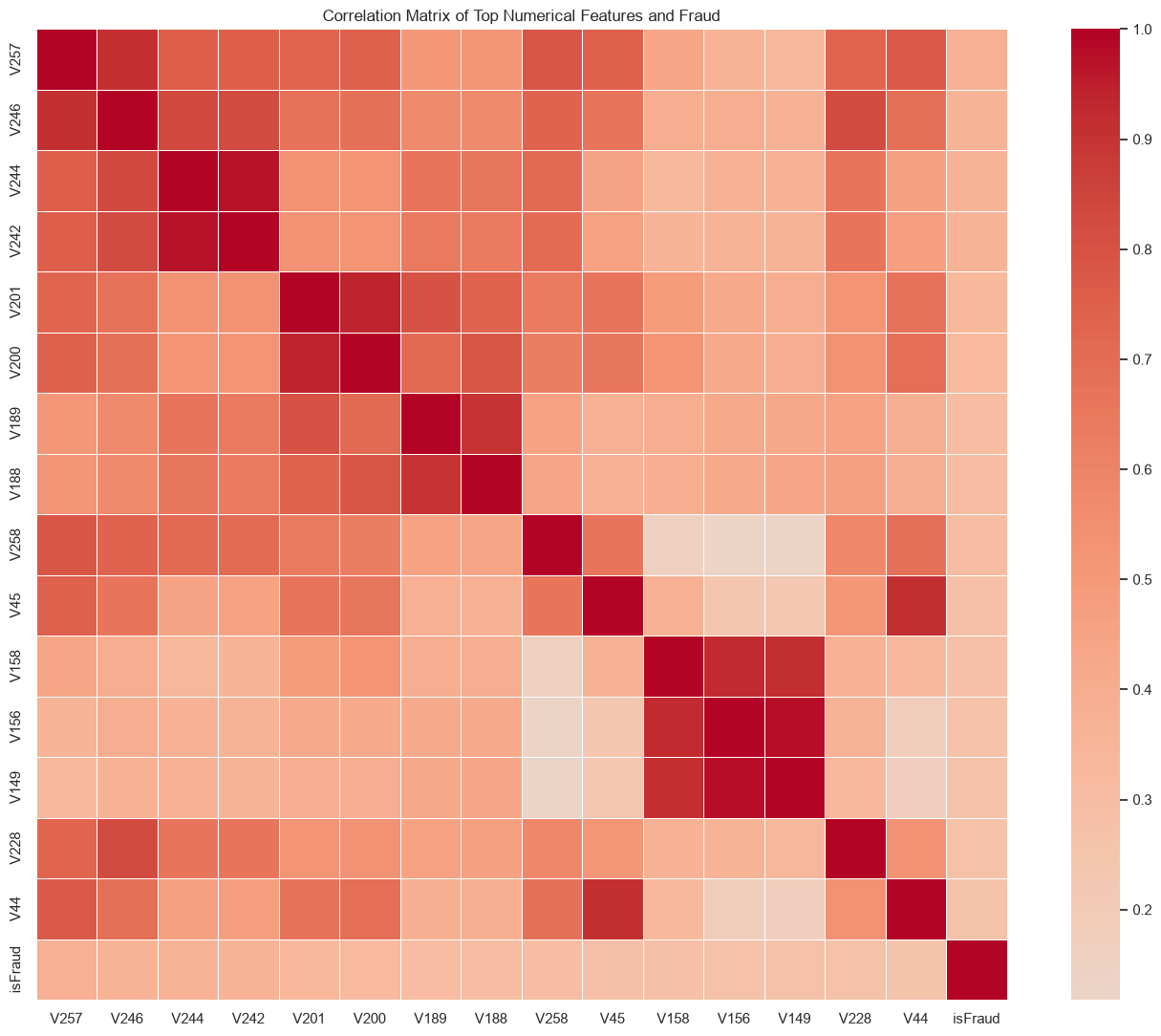

11.6 Focused correlation heatmap

Create a heatmap using only the predictors most strongly correlated with fraud.

Code
top_features = (
    correlation_with_fraud
    .head(15)
    .index
    .tolist()
)

focused_corr = df[top_features + ["isFraud"]].corr()

plt.figure(figsize=(14, 11))

sns.heatmap(
    focused_corr,
    cmap="coolwarm",
    center=0,
    square=True,
    linewidths=0.5
)

plt.title(
    "Correlation Matrix of Top Numerical Features and Fraud"
)

plt.tight_layout()
plt.show()

11.7 Detect highly correlated predictor pairs

Highly correlated predictors may contain redundant information.

Code
# Use the top 50 fraud-correlated predictors for a manageable redundancy check

selected_features = (
    correlation_with_fraud
    .head(50)
    .index
    .tolist()
)

predictor_corr = (
    df[selected_features]
    .corr()
    .abs()
)

# Keep only the upper triangle to avoid duplicate pairs
upper_triangle = predictor_corr.where(
    np.triu(
        np.ones(predictor_corr.shape),
        k=1
    ).astype(bool)
)

highly_correlated_pairs = (
    upper_triangle
    .stack()
    .reset_index()
)

highly_correlated_pairs.columns = [
    "Feature 1",
    "Feature 2",
    "Absolute Correlation"
]

highly_correlated_pairs = (
    highly_correlated_pairs[
        highly_correlated_pairs["Absolute Correlation"] >= 0.90
    ]
    .sort_values(
        "Absolute Correlation",
        ascending=False
    )
)

print(
    "Number of predictor pairs with absolute correlation >= 0.90:",
    len(highly_correlated_pairs)
)

highly_correlated_pairs.head(30)
Number of predictor pairs with absolute correlation >= 0.90: 50
Feature 1 Feature 2 Absolute Correlation
2143 V17 V18 0.991474
1491 V154 V153 0.986471
562 V156 V149 0.976168
1074 V155 V148 0.975978
1940 V94 V33 0.975796
103 V244 V242 0.974318
2349 V92 V50 0.970760
2296 V93 V92 0.963108
1091 V155 V153 0.960661
2047 V33 V34 0.959243
1180 V199 V190 0.955218
520 V158 V157 0.954520
571 V156 V155 0.953647
2248 V81 V80 0.953223
1241 V148 V153 0.952071
975 V52 V51 0.952022
1737 V43 V42 0.952002
1288 V51 V94 0.950989
624 V149 V148 0.950232
1079 V155 V154 0.949000
1381 V40 V39 0.943888
205 V201 V200 0.941582
1290 V51 V33 0.940497
1229 V148 V154 0.939466
2299 V93 V50 0.933852
1947 V94 V34 0.933831
933 V147 V146 0.932216
574 V156 V148 0.931158
579 V156 V154 0.929691
621 V149 V155 0.926838

11.8 Correlation-strength summary

Code
absolute_correlations = correlation_with_fraud.abs()

correlation_strength_summary = pd.DataFrame({
    "Correlation Strength": [
        "Very weak: < 0.10",
        "Weak: 0.10–0.30",
        "Moderate: 0.30–0.50",
        "Strong: ≥ 0.50"
    ],
    "Number of Features": [
        (absolute_correlations < 0.10).sum(),
        (
            (absolute_correlations >= 0.10) &
            (absolute_correlations < 0.30)
        ).sum(),
        (
            (absolute_correlations >= 0.30) &
            (absolute_correlations < 0.50)
        ).sum(),
        (absolute_correlations >= 0.50).sum()
    ]
})

correlation_strength_summary
Correlation Strength Number of Features
0 Very weak: < 0.10 285
1 Weak: 0.10–0.30 111
2 Moderate: 0.30–0.50 8
3 Strong: ≥ 0.50 0
Code
plt.figure(figsize=(9, 5))

sns.barplot(
    data=correlation_strength_summary,
    x="Number of Features",
    y="Correlation Strength"
)

plt.title("Strength of Numerical Correlations with Fraud")
plt.xlabel("Number of Features")
plt.ylabel("Absolute Correlation Range")
plt.tight_layout()

plt.show()

11.9 Optional: Spearman correlation for key features

Pearson measures linear relationships. Spearman can detect monotonic relationships and is less sensitive to extreme values.

We only do this only for the top features rather than all numerical columns:

Code
spearman_features = (
    correlation_with_fraud
    .head(20)
    .index
    .tolist()
)

spearman_with_fraud = (
    df[spearman_features + ["isFraud"]]
    .corr(method="spearman")["isFraud"]
    .drop("isFraud")
    .sort_values(key=abs, ascending=False)
)

correlation_comparison = pd.DataFrame({
    "Pearson Correlation": correlation_with_fraud[
        spearman_features
    ],
    "Spearman Correlation": spearman_with_fraud[
        spearman_features
    ]
})

correlation_comparison["Pearson Absolute"] = (
    correlation_comparison["Pearson Correlation"].abs()
)

correlation_comparison.sort_values(
    "Pearson Absolute",
    ascending=False
).drop(columns="Pearson Absolute")
Pearson Correlation Spearman Correlation
V257 0.383060 0.387434
V246 0.366878 0.398693
V244 0.364129 0.404460
V242 0.360590 0.395531
V201 0.328005 0.282981
V200 0.318783 0.271738
V189 0.308219 0.256804
V188 0.303582 0.240248
V258 0.297151 0.385553
V45 0.281832 0.184659
V158 0.278066 0.148390
V156 0.275952 0.141823
V149 0.273282 0.139186
V228 0.268861 0.271252
V44 0.260376 0.193269
V86 0.251828 0.172538
V87 0.251737 0.158206
V170 0.249794 0.203957
V147 0.242894 0.211622
V52 0.239469 0.198210

Correlation Analysis Findings

  • Most numerical predictors exhibit weak individual linear correlations with isFraud. This indicates that no single numerical variable provides sufficient separation between fraudulent and legitimate transactions.

  • A limited group of variables shows comparatively stronger positive or negative relationships with fraud and should be retained for further modelling and feature-importance analysis.

  • Several numerical predictors are strongly correlated with one another, indicating potential redundancy within the high-dimensional feature space. This may affect linear models through multicollinearity, although tree-based models are generally less sensitive to this issue.

  • Weak Pearson correlation does not imply that a variable lacks predictive value. Fraud patterns may depend on nonlinear effects, threshold behaviour, missingness patterns, and interactions among transaction, card, identity, and device variables.

  • Consequently, correlation analysis will be used as an exploratory and diagnostic tool rather than as the sole criterion for feature selection.

We do not automatically delete features merely because their target correlation is low. That would remove predictors involved in nonlinear relationships, which are common in fraud detection. Use validation performance and model-based feature importance later to make the final feature-selection decisions.

12. Business Insights

12.1 Overall fraud exposure

Code
# Overall fraud exposure

overall_fraud_summary = pd.DataFrame({
    "Metric": [
        "Total Transactions",
        "Fraudulent Transactions",
        "Legitimate Transactions",
        "Fraud Rate (%)",
        "Fraud-to-Legitimate Ratio"
    ],
    "Value": [
        len(df),
        int(df["isFraud"].sum()),
        int((df["isFraud"] == 0).sum()),
        round(df["isFraud"].mean() * 100, 2),
        round(
            df["isFraud"].sum() /
            (df["isFraud"] == 0).sum(),
            4
        )
    ]
})

overall_fraud_summary
Metric Value
0 Total Transactions 590540.0000
1 Fraudulent Transactions 20663.0000
2 Legitimate Transactions 569877.0000
3 Fraud Rate (%) 3.5000
4 Fraud-to-Legitimate Ratio 0.0363

12.2 Financial exposure by fraud class

Code
# Transaction-value exposure by fraud class

fraud_value_summary = (
    df.groupby("isFraud")
      .agg(
          transaction_count=("TransactionID", "count"),
          total_transaction_value=("TransactionAmt", "sum"),
          average_transaction_value=("TransactionAmt", "mean"),
          median_transaction_value=("TransactionAmt", "median"),
          maximum_transaction_value=("TransactionAmt", "max")
      )
      .reset_index()
)

fraud_value_summary["Fraud Status"] = fraud_value_summary["isFraud"].map({
    0: "Legitimate",
    1: "Fraudulent"
})

fraud_value_summary[
    [
        "Fraud Status",
        "transaction_count",
        "total_transaction_value",
        "average_transaction_value",
        "median_transaction_value",
        "maximum_transaction_value"
    ]
].round(2)
Fraud Status transaction_count total_transaction_value average_transaction_value median_transaction_value maximum_transaction_value
0 Legitimate 569877 76655103.88 134.51 68.5 31937.39
1 Fraudulent 20663 3083844.86 149.24 75.0 5191.00

Calculate the percentage of transaction value associated with fraud:

Code
fraudulent_value = df.loc[
    df["isFraud"] == 1,
    "TransactionAmt"
].sum()

total_value = df["TransactionAmt"].sum()

fraud_value_percentage = (
    fraudulent_value / total_value
) * 100

print(
    f"Fraudulent transactions represent "
    f"{fraud_value_percentage:.2f}% of total transaction value."
)
Fraudulent transactions represent 3.87% of total transaction value.

12.3 Highest-risk product categories

Code
# Fraud risk by product category

product_risk = (
    df.groupby("ProductCD", dropna=False)
      .agg(
          transaction_count=("TransactionID", "count"),
          fraud_count=("isFraud", "sum"),
          fraud_rate=("isFraud", "mean"),
          total_value=("TransactionAmt", "sum"),
          fraudulent_value=(
              "TransactionAmt",
              lambda x: x[df.loc[x.index, "isFraud"] == 1].sum()
          )
      )
      .reset_index()
)

product_risk["fraud_rate_pct"] = (
    product_risk["fraud_rate"] * 100
)

product_risk.sort_values(
    "fraud_rate_pct",
    ascending=False
).round(2)
ProductCD transaction_count fraud_count fraud_rate total_value fraudulent_value fraud_rate_pct
0 C 68519 8008 0.12 2937570.76 391421.40 11.69
3 S 11628 686 0.06 700813.60 43416.00 5.90
1 H 33024 1574 0.05 2416368.00 246632.00 4.77
2 R 37699 1426 0.04 6344975.00 348050.00 3.78
4 W 439670 8969 0.02 67339221.37 2054325.46 2.04
Code
plt.figure(figsize=(8, 5))

sns.barplot(
    data=product_risk.sort_values(
        "fraud_rate_pct",
        ascending=False
    ),
    x="ProductCD",
    y="fraud_rate_pct"
)

plt.title("Fraud Rate by Product Category")
plt.xlabel("Product Category")
plt.ylabel("Fraud Rate (%)")
plt.tight_layout()

plt.show()

12.4 Highest-risk transaction amount bands

We use the TransactionAmt_band variable created earlier:

Code
# Fraud risk by transaction amount band

amount_risk = (
    df.groupby(
        "TransactionAmt_band",
        observed=False
    )
    .agg(
        transaction_count=("TransactionID", "count"),
        fraud_count=("isFraud", "sum"),
        fraud_rate=("isFraud", "mean"),
        total_transaction_value=("TransactionAmt", "sum"),
        fraudulent_value=(
            "TransactionAmt",
            lambda x: x[df.loc[x.index, "isFraud"] == 1].sum()
        )
    )
    .reset_index()
)

amount_risk["fraud_rate_pct"] = (
    amount_risk["fraud_rate"] * 100
)

amount_risk.round(2)
TransactionAmt_band transaction_count fraud_count fraud_rate total_transaction_value fraudulent_value fraud_rate_pct
0 0–25 50829 3150 0.06 896532.28 50031.06 6.20
1 25–50 153695 4683 0.03 5969086.47 178310.99 3.05
2 50–100 164095 4788 0.03 11793998.25 355346.32 2.92
3 100–200 128041 3899 0.03 16967525.76 558680.71 3.05
4 200–500 71001 3135 0.04 20969859.34 1003252.81 4.42
5 500–1000 15612 829 0.05 10637374.08 637292.61 5.31
6 1000+ 7267 179 0.02 12504572.55 300930.36 2.46
Code
plt.figure(figsize=(10, 5))

sns.barplot(
    data=amount_risk,
    x="TransactionAmt_band",
    y="fraud_rate_pct"
)

plt.title("Fraud Rate by Transaction Amount Band")
plt.xlabel("Transaction Amount Band")
plt.ylabel("Fraud Rate (%)")
plt.xticks(rotation=45)
plt.tight_layout()

plt.show()

12.5 Card-network risk

Code
# Fraud risk by card network

card_network_risk = (
    df.groupby("card4", dropna=False)
      .agg(
          transaction_count=("TransactionID", "count"),
          fraud_count=("isFraud", "sum"),
          fraud_rate=("isFraud", "mean")
      )
      .reset_index()
)

card_network_risk["fraud_rate_pct"] = (
    card_network_risk["fraud_rate"] * 100
)

card_network_risk.sort_values(
    "fraud_rate_pct",
    ascending=False
).round(2)
card4 transaction_count fraud_count fraud_rate fraud_rate_pct
1 discover 6651 514 0.08 7.73
3 visa 384767 13373 0.03 3.48
2 mastercard 189217 6496 0.03 3.43
0 american express 8328 239 0.03 2.87
4 NaN 1577 41 0.03 2.60

12.6 Card-type risk

Code
# Fraud risk by card type

card_type_risk = (
    df.groupby("card6", dropna=False)
      .agg(
          transaction_count=("TransactionID", "count"),
          fraud_count=("isFraud", "sum"),
          fraud_rate=("isFraud", "mean")
      )
      .reset_index()
)

card_type_risk["fraud_rate_pct"] = (
    card_type_risk["fraud_rate"] * 100
)

card_type_risk.sort_values(
    "fraud_rate_pct",
    ascending=False
).round(2)
card6 transaction_count fraud_count fraud_rate fraud_rate_pct
1 credit 148986 9950 0.07 6.68
4 NaN 1571 39 0.02 2.48
2 debit 439938 10674 0.02 2.43
0 charge card 15 0 0.00 0.00
3 debit or credit 30 0 0.00 0.00

12.7 Device-based fraud risk

Code
# Fraud risk by device type

device_risk = (
    df.groupby("DeviceType", dropna=False)
      .agg(
          transaction_count=("TransactionID", "count"),
          fraud_count=("isFraud", "sum"),
          fraud_rate=("isFraud", "mean")
      )
      .reset_index()
)

device_risk["fraud_rate_pct"] = (
    device_risk["fraud_rate"] * 100
)

device_risk.sort_values(
    "fraud_rate_pct",
    ascending=False
).round(2)
DeviceType transaction_count fraud_count fraud_rate fraud_rate_pct
1 mobile 55645 5657 0.10 10.17
0 desktop 85165 5554 0.07 6.52
2 NaN 449730 9452 0.02 2.10

We treat missing device information as an explicit investigation signal:

Code
df["DeviceInfoAvailable"] = np.where(
    df["DeviceInfo"].notna(),
    "Available",
    "Missing"
)

device_information_risk = (
    df.groupby("DeviceInfoAvailable")
      .agg(
          transaction_count=("TransactionID", "count"),
          fraud_count=("isFraud", "sum"),
          fraud_rate=("isFraud", "mean")
      )
      .reset_index()
)

device_information_risk["fraud_rate_pct"] = (
    device_information_risk["fraud_rate"] * 100
)

device_information_risk.round(2)
DeviceInfoAvailable transaction_count fraud_count fraud_rate fraud_rate_pct
0 Available 118666 8607 0.07 7.25
1 Missing 471874 12056 0.03 2.55

12.8 Identity-information availability

Code
# Count the number of identity variables available for each transaction

identity_columns = [
    col for col in df.columns
    if col.startswith("id_")
]

df["IdentityFeaturesAvailable"] = (
    df[identity_columns]
    .notna()
    .sum(axis=1)
)

identity_availability_summary = (
    df.groupby("isFraud")["IdentityFeaturesAvailable"]
      .agg(
          mean="mean",
          median="median",
          minimum="min",
          maximum="max"
      )
      .rename(index={
          0: "Legitimate",
          1: "Fraudulent"
      })
)

identity_availability_summary.round(2)
mean median minimum maximum
isFraud
Legitimate 5.51 0.0 0 38
Fraudulent 12.84 19.0 0 38

Create availability bands:

Code
df["IdentityAvailabilityBand"] = pd.cut(
    df["IdentityFeaturesAvailable"],
    bins=[-1, 0, 5, 10, 20, np.inf],
    labels=[
        "None",
        "1–5",
        "6–10",
        "11–20",
        "21+"
    ]
)

identity_risk = (
    df.groupby(
        "IdentityAvailabilityBand",
        observed=False
    )
    .agg(
        transaction_count=("TransactionID", "count"),
        fraud_count=("isFraud", "sum"),
        fraud_rate=("isFraud", "mean")
    )
    .reset_index()
)

identity_risk["fraud_rate_pct"] = (
    identity_risk["fraud_rate"] * 100
)

identity_risk.round(2)
IdentityAvailabilityBand transaction_count fraud_count fraud_rate fraud_rate_pct
0 None 446307 9345 0.02 2.09
1 1–5 3248 96 0.03 2.96
2 6–10 7 4 0.57 57.14
3 11–20 32618 2414 0.07 7.40
4 21+ 108360 8804 0.08 8.12

12.9 Time-based risk patterns

Code
# Fraud risk by relative transaction hour

hourly_business_risk = (
    df.groupby("TransactionHour")
      .agg(
          transaction_count=("TransactionID", "count"),
          fraud_count=("isFraud", "sum"),
          fraud_rate=("isFraud", "mean"),
          fraudulent_value=(
              "TransactionAmt",
              lambda x: x[df.loc[x.index, "isFraud"] == 1].sum()
          )
      )
      .reset_index()
)

hourly_business_risk["fraud_rate_pct"] = (
    hourly_business_risk["fraud_rate"] * 100
)

hourly_business_risk.sort_values(
    "fraud_rate_pct",
    ascending=False
).head(10).round(2)
TransactionHour transaction_count fraud_count fraud_rate fraudulent_value fraud_rate_pct
7 7 3704 393 0.11 39466.93 10.61
8 8 2591 241 0.09 38833.63 9.30
9 9 2479 223 0.09 48447.96 9.00
6 6 6007 467 0.08 50704.91 7.77
5 5 9701 682 0.07 79136.28 7.03
10 10 3627 193 0.05 31333.13 5.32
4 4 14839 770 0.05 83123.13 5.19
11 11 6827 265 0.04 36448.50 3.88
3 3 20802 797 0.04 93367.78 3.83
2 2 26732 1002 0.04 122812.96 3.75
Code
plt.figure(figsize=(10, 5))

sns.lineplot(
    data=hourly_business_risk,
    x="TransactionHour",
    y="fraud_rate_pct",
    marker="o"
)

plt.title("Relative Hourly Fraud Risk")
plt.xlabel("Relative Transaction Hour")
plt.ylabel("Fraud Rate (%)")
plt.xticks(range(24))
plt.tight_layout()

plt.show()

# These are NOT confirmed local clock hours because TransactionDT starts from an undisclosed reference point.

12.10 High-risk segment identification

This combines multiple business variables and avoids ranking tiny categories with unstable fraud rates.

Code
# Identify high-risk transaction segments

segment_risk = (
    df.groupby(
        [
            "ProductCD",
            "card4",
            "card6",
            "DeviceType"
        ],
        dropna=False
    )
    .agg(
        transaction_count=("TransactionID", "count"),
        fraud_count=("isFraud", "sum"),
        fraud_rate=("isFraud", "mean"),
        average_amount=("TransactionAmt", "mean"),
        fraudulent_value=(
            "TransactionAmt",
            lambda x: x[df.loc[x.index, "isFraud"] == 1].sum()
        )
    )
    .reset_index()
)

segment_risk["fraud_rate_pct"] = (
    segment_risk["fraud_rate"] * 100
)

# Minimum volume avoids misleading conclusions from tiny segments
high_risk_segments = (
    segment_risk[
        segment_risk["transaction_count"] >= 500
    ]
    .sort_values(
        ["fraud_rate_pct", "fraudulent_value"],
        ascending=[False, False]
    )
)

high_risk_segments.head(20).round(2)
ProductCD card4 card6 DeviceType transaction_count fraud_count fraud_rate average_amount fraudulent_value fraud_rate_pct
10 C visa credit mobile 6073 1313 0.22 41.03 58385.94 21.62
2 C mastercard credit mobile 4293 833 0.19 39.68 38447.68 19.40
9 C visa credit desktop 7699 1308 0.17 50.82 72980.04 16.99
1 C mastercard credit desktop 6048 935 0.15 48.94 49915.16 15.46
63 R mastercard credit mobile 1398 194 0.14 169.37 56425.00 13.88
31 H mastercard credit mobile 1579 149 0.09 90.09 31775.00 9.44
13 C visa debit mobile 11466 1059 0.09 36.07 44911.35 9.24
11 C visa credit NaN 1949 171 0.09 53.07 11464.68 8.77
12 C visa debit desktop 11189 979 0.09 45.69 50166.67 8.75
69 R visa credit mobile 3832 329 0.09 162.36 86375.00 8.59
5 C mastercard debit mobile 7246 619 0.09 33.69 24725.42 8.54
97 W discover credit NaN 4050 326 0.08 355.63 156993.59 8.05
4 C mastercard debit desktop 6817 536 0.08 43.54 26079.97 7.86
95 S visa debit mobile 794 61 0.08 27.83 3547.00 7.68
66 R mastercard debit mobile 865 66 0.08 133.53 18825.00 7.63
3 C mastercard credit NaN 1487 101 0.07 51.66 5776.70 6.79
94 S visa debit desktop 2803 178 0.06 35.84 3997.00 6.35
89 S mastercard debit mobile 508 32 0.06 25.32 2200.00 6.30
37 H visa credit mobile 3533 205 0.06 79.35 34248.00 5.80
33 H mastercard debit desktop 1691 97 0.06 66.10 13045.00 5.74

12.11 Investigation-priority score

This is an exploratory triage score, not a trained fraud model.

Code
# Exploratory investigation-priority score

business_summary = df[
    [
        "TransactionID",
        "TransactionAmt",
        "isFraud",
        "ProductCD",
        "card4",
        "card6",
        "DeviceType",
        "DeviceInfo"
    ]
].copy()

business_summary["HighAmountFlag"] = (
    business_summary["TransactionAmt"] >=
    df["TransactionAmt"].quantile(0.95)
).astype(int)

business_summary["MissingDeviceFlag"] = (
    business_summary["DeviceInfo"].isna()
).astype(int)

business_summary["IdentityMissingRate"] = (
    df[identity_columns].isna().mean(axis=1)
)

business_summary["RiskPriorityScore"] = (
    business_summary["HighAmountFlag"] * 2
    + business_summary["MissingDeviceFlag"]
    + (
        business_summary["IdentityMissingRate"] >= 0.75
    ).astype(int)
)

business_summary.sort_values(
    [
        "RiskPriorityScore",
        "TransactionAmt"
    ],
    ascending=[False, False]
).head(20)
TransactionID TransactionAmt isFraud ProductCD card4 card6 DeviceType DeviceInfo HighAmountFlag MissingDeviceFlag IdentityMissingRate RiskPriorityScore
274336 3261336 31937.391 0 W mastercard credit NaN NaN 1 1 1.0 4
274339 3261339 31937.391 0 W mastercard credit NaN NaN 1 1 1.0 4
296021 3283021 6450.970 0 W visa debit NaN NaN 1 1 1.0 4
248413 3235413 6085.230 0 W mastercard credit NaN NaN 1 1 1.0 4
384603 3371603 5543.230 0 W visa credit NaN NaN 1 1 1.0 4
275529 3262529 5420.000 0 W mastercard debit NaN NaN 1 1 1.0 4
275535 3262535 5420.000 0 W mastercard debit NaN NaN 1 1 1.0 4
584767 3571767 5366.820 0 W visa credit NaN NaN 1 1 1.0 4
303106 3290106 5279.950 0 W mastercard credit NaN NaN 1 1 1.0 4
315172 3302172 5279.950 0 W visa credit NaN NaN 1 1 1.0 4
462514 3449514 5279.950 0 W mastercard credit NaN NaN 1 1 1.0 4
171451 3158451 5278.950 0 W visa debit NaN NaN 1 1 1.0 4
575569 3562569 5277.950 0 W mastercard debit NaN NaN 1 1 1.0 4
409855 3396855 5191.000 0 W visa credit NaN NaN 1 1 1.0 4
422708 3409708 5191.000 1 W visa debit NaN NaN 1 1 1.0 4
119566 3106566 5094.950 0 W visa credit NaN NaN 1 1 1.0 4
423729 3410729 5047.470 0 W visa credit NaN NaN 1 1 1.0 4
584835 3571835 5001.820 0 W visa credit NaN NaN 1 1 1.0 4
249993 3236993 4989.970 0 W mastercard credit NaN NaN 1 1 1.0 4
335107 3322107 4976.310 0 W mastercard credit NaN NaN 1 1 1.0 4

The investigation-priority score is an exploratory business rule created for triage analysis. It is not a validated fraud prediction model and should not be used to make automated decisions.

Business Insights Findings

The exploratory analysis reveals several important patterns in customer transaction behavior and fraudulent activity. Fraudulent transactions account for 3.50% of all transactions in the dataset, indicating that fraud is relatively infrequent but still significant enough to warrant detection efforts. In monetary terms, fraudulent transactions represent 3.87% of total transaction value. Their average value is $149.24, compared with $134.51 for legitimate transactions, although transaction amount alone is not sufficient to identify fraud.

Analysis by product category shows that ProductCD = C exhibits the highest fraud rate, indicating that transactions involving this product are proportionally more likely to be fraudulent. However, ProductCD = W contributes the largest total fraudulent monetary value, highlighting that while fraud may occur less frequently within this category, its financial impact is substantially greater.

Temporal analysis further indicates that fraudulent activity is not uniformly distributed across time. Certain periods exhibit noticeably higher fraud concentrations, suggesting that transaction timing may provide valuable predictive information for fraud detection models. Incorporating temporal features alongside transaction characteristics may therefore improve model performance.

Overall, these findings demonstrate that transaction amount, product category, and temporal behavior provide meaningful signals for distinguishing fraudulent from legitimate transactions and can guide the development of more effective fraud detection systems.

13. Conclusions

This exploratory analysis revealed several important characteristics of the IEEE-CIS Fraud Detection dataset.

The dataset contains substantial missing data, severe class imbalance, and a diverse set of numerical and categorical variables. These findings will guide the data wrangling, preprocessing, feature engineering, and model development stages of the Explainable Fraud Detection and Investigation Platform.

  • Fraud is extremely rare (~3–4%), creating a severe imbalance.
  • Missing identity variables appear informative rather than merely incomplete.
  • Product, card, and device variables show measurable differences in fraud risk.
  • The next phase will evaluate whether these EDA findings improve predictive performance.

The severe class imbalance (~3.5% fraudulent transactions) suggests that accuracy alone will not be an appropriate evaluation metric. Precision, recall, F1/F2, ROC-AUC, and average precision will therefore be emphasized during model evaluation.
