01 — Data Foundation and Engineering

Project: Transaction Intelligence: Customer Segmentation and Behavioral Analytics
Dataset: Berka / PKDD’99 Financial Dataset
Course alignment:

Week 1 — Data Science in Practice
Week 3 — Data Preparation
Week 4 — Data Engineering
Week 5 — Modern Data Architectures

This notebook establishes the analytical contract for the project and builds its reusable data foundation. It frames the problem, audits the validated relational snapshot, documents preparation decisions, and produces four Silver-layer Parquet tables. It does not perform customer segmentation or make fraud claims.

Notebook objectives

Frame the business and analytical problem.
Verify provenance, schema, keys, relationships, and data quality.
Standardize important categorical fields without erasing the source values.
Define defensible missing-value, extreme-value, encoding, scaling, and leakage policies.
Build purpose-specific analytical tables using DuckDB SQL.
Document how the local implementation maps to modern data architectures.

1. Business-problem framing

Primary research question

How can historical banking transactions and customer characteristics be used to identify meaningful customer segments and understand differences in financial behavior?

Supporting questions

What transaction, balance, service-use, and account-tenure behaviors are present?
Which characteristics distinguish groups of accounts?
How do service relationships, demographics, and activity patterns differ across groups?
Which accounts behave unusually relative to comparable accounts?
What organizational activity can be forecast, and what service recommendations could be investigated?
How sensitive are the findings to preparation choices, historical context, and incomplete information?

The project is an exploratory customer-intelligence study. A statistical outlier is not evidence of fraud, and a discovered association is not evidence that a recommendation will benefit a customer.

Stakeholders, decisions, and outputs

Stakeholder	Potential decision or need	Appropriate project output
Customer analytics team	Understand heterogeneous account behavior	Interpretable behavioral segments
Product and service team	Investigate relevant service combinations	Association patterns and recommendation hypotheses
Branch or portfolio managers	Monitor changes in aggregate banking activity	Descriptive summaries and bounded forecasts
Data and AI team	Reproduce, validate, and extend the analysis	Versioned data pipeline, quality checks, and documented features
Customers and regulators	Expect fair and responsible use of financial data	Privacy protection, limitations, and non-discriminatory interpretation

No automated lending, fraud, or customer-treatment decision should be made from this course project.

Analytics framing

Analytics type	Project question	Planned method
Descriptive	What behaviors are present?	EDA, summaries, temporal profiles
Diagnostic	What characteristics distinguish customer groups?	Feature comparisons, clustering profiles
Predictive	What aggregate banking activity or bounded loan outcome can be estimated?	Time-series forecasting; limited supervised case study
Prescriptive	What service recommendations could be investigated?	Association rules interpreted as hypotheses

The descriptive and diagnostic components are central. Predictive and prescriptive components remain bounded demonstrations because the project goal is not to build another fraud or lending-decision tool.

Analytical units and grain

Unit	Grain	Intended use
Transaction	One row per transaction	Cash-flow, temporal, and behavioral analysis
Disposition	One client–account relationship	Ownership and authorized-user analysis
Account	One row per bank account	Primary unit for segmentation
Loan	One row per loan	Bounded supervised-learning case study
District	One row per district	Contextual demographic attributes
Month	One row per calendar month	Aggregate time-series analysis

An account is the primary segmentation unit because transactions and most services are linked to accounts. Every account has exactly one OWNER disposition; 869 accounts also have a DISPONENT. Treating every disposition as a separate account would duplicate shared financial behavior.

Success criteria and lifecycle

Analytical success

Produce exactly one validated account-level base record for each of the 4,500 accounts.
Preserve all 1,056,320 source transactions after standardization.
Explain segment differences with stable, interpretable features—not only cluster metrics.
Distinguish data errors, valid extremes, and behavioral outliers.
Prevent temporal leakage in forecasting and loan-outcome analysis.
State historical, privacy, representation, and causal limitations.

Lifecycle

Problem framing → acquisition → validation → preparation → exploration → feature engineering → modelling → evaluation → interpretation → reporting.

Each notebook consumes versioned outputs from the previous stage. Raw files are immutable; derived tables can be rebuilt.

Ethical constraints

The dataset is anonymized, but banking behavior remains sensitive.
Gender, age, and district attributes require a documented analytical purpose and bias assessment.
The data describe a Czech bank in 1993–1998; findings are not automatically transferable to present-day customers or other countries.
Segment labels must describe observed behavior without stigmatizing customers.
Behavioral outliers must not be described as fraud or misconduct.
Recommendation patterns are hypotheses, not proof of customer need or suitability.
Loan-outcome analysis must exclude information recorded after the loan decision date.

2. Reproducible environment and provenance

The acquisition process creates an immutable Bronze snapshot: eight CSV tables, the original MariaDB DDL, and a checksum manifest. The local DuckDB database reconstructs the keys and relationships and is the only database queried by this notebook.

Code

from pathlib import Path
import json
import platform

import duckdb
import matplotlib.pyplot as plt
import pandas as pd
from matplotlib.patches import FancyBboxPatch
from IPython.display import display
from sklearn.compose import ColumnTransformer
from sklearn.impute import SimpleImputer
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import OneHotEncoder, StandardScaler


def find_project_root(start: Path | None = None) -> Path:
    current = (start or Path.cwd()).resolve()
    for candidate in (current, *current.parents):
        if (candidate / "pyproject.toml").is_file():
            return candidate
    raise FileNotFoundError("Could not locate the project root containing pyproject.toml")


PROJECT_ROOT = find_project_root()
RAW_DIR = PROJECT_ROOT / "data" / "raw"
INTERIM_DIR = PROJECT_ROOT / "data" / "interim"
PROCESSED_DIR = PROJECT_ROOT / "data" / "processed"
MANIFEST_PATH = RAW_DIR / "download_manifest.json"
RELATIONSHIP_REPORT_PATH = INTERIM_DIR / "relationship_validation.json"
DATABASE_PATH = INTERIM_DIR / "berka.duckdb"

INTERIM_DIR.mkdir(parents=True, exist_ok=True)

environment = pd.Series(
    {
        "Python": platform.python_version(),
        "DuckDB": duckdb.__version__,
        "Project root": ".",
        "Database": str(DATABASE_PATH.relative_to(PROJECT_ROOT)),
    },
    name="value",
)
display(environment.to_frame())

	value
Python	3.14.6
DuckDB	1.5.5
Project root	.
Database	data/interim/berka.duckdb

Code

required_artifacts = {
    "Download manifest": MANIFEST_PATH,
    "Source MariaDB schema": RAW_DIR / "schema_mariadb.sql",
    "Local DuckDB database": DATABASE_PATH,
    "Relationship validation": RELATIONSHIP_REPORT_PATH,
}

artifact_status = pd.DataFrame(
    [
        {
            "artifact": name,
            "path": str(path.relative_to(PROJECT_ROOT)),
            "exists": path.is_file(),
            "size_mb": round(path.stat().st_size / 1_048_576, 3) if path.is_file() else None,
        }
        for name, path in required_artifacts.items()
    ]
)
display(artifact_status)

missing_artifacts = artifact_status.loc[~artifact_status["exists"], "artifact"].tolist()
assert not missing_artifacts, (
    "Missing required artifacts: "
    + ", ".join(missing_artifacts)
    + ". Run scripts/download_berka.py and scripts/build_local_database.py first."
)

manifest = json.loads(MANIFEST_PATH.read_text(encoding="utf-8"))
relationship_report = json.loads(RELATIONSHIP_REPORT_PATH.read_text(encoding="utf-8"))

provenance = pd.Series(
    {
        "Source": manifest["source"],
        "Dataset": manifest["dataset"],
        "URL": manifest["url"],
        "Retrieved (UTC)": manifest["retrieved_at_utc"],
        "Source database": manifest["database"],
        "Source host": manifest["host"],
        "Schema checksum": manifest["schema_sha256"],
        "Relationship validation": relationship_report["valid"],
    },
    name="value",
)
display(provenance.to_frame())

	artifact	path	exists	size_mb
0	Download manifest	data/raw/download_manifest.json	True	0.012
1	Source MariaDB schema	data/raw/schema_mariadb.sql	True	0.004
2	Local DuckDB database	data/interim/berka.duckdb	True	46.262
3	Relationship validation	data/interim/relationship_validation.json	True	0.002

	value
Source	CTU Prague Relational Dataset Repository
Dataset	Financial — PKDD’99 Financial Dataset
URL	https://relational.fel.cvut.cz/dataset/Financial
Retrieved (UTC)	2026-07-17T05:45:37.075352+00:00
Source database	financial
Source host	relational.fel.cvut.cz
Schema checksum	ba5ea18fe037f77ccb97ef98a0cb91d5ca50838c44375d...
Relationship validation	True

3. Relational inventory and data engineering

The database contains eight normalized tables. Primary and foreign keys are retained in DuckDB, while the download manifest preserves the original MariaDB column definitions and checksums.

Relationship map

district ──< account ──< disp >── client >── district
                 │          │
                 │          └──< card
                 ├──< loan
                 ├──< order
                 └──< trans

The disposition table resolves the many-to-many relationship between clients and accounts. Purpose-specific joins are used instead of creating one universal denormalized table with mixed grain.

Code

connection = duckdb.connect(str(DATABASE_PATH), read_only=True)

inventory_rows = []
for table_name, metadata in manifest["tables"].items():
    local_rows = connection.execute(
        "SELECT COUNT(*) FROM " + '"' + table_name.replace('"', '""') + '"'
    ).fetchone()[0]
    inventory_rows.append(
        {
            "table": table_name,
            "grain/key": ", ".join(metadata["primary_key"]),
            "columns": len(metadata["columns"]),
            "source_rows": metadata["source_row_count"],
            "exported_rows": metadata["exported_row_count"],
            "local_rows": local_rows,
            "foreign_keys": len(metadata["foreign_keys"]),
            "row_counts_match": (
                metadata["source_row_count"] == metadata["exported_row_count"] == local_rows
            ),
        }
    )

table_inventory = pd.DataFrame(inventory_rows).sort_values("table").reset_index(drop=True)
display(table_inventory)
assert table_inventory["row_counts_match"].all()

relationship_summary = pd.DataFrame(relationship_report["relationships"])
display(
    relationship_summary[
        ["table", "columns", "referenced_table", "referenced_columns", "orphan_count", "valid"]
    ]
)
assert relationship_report["valid"]
assert relationship_summary["valid"].all()

	table	grain/key	columns	source_rows	exported_rows	local_rows	foreign_keys	row_counts_match
0	account	account_id	4	4500	4500	4500	1	True
1	card	card_id	4	892	892	892	1	True
2	client	client_id	4	5369	5369	5369	1	True
3	disp	disp_id	4	5369	5369	5369	2	True
4	district	district_id	16	77	77	77	0	True
5	loan	loan_id	7	682	682	682	1	True
6	order	order_id	6	6471	6471	6471	1	True
7	trans	trans_id	10	1056320	1056320	1056320	1	True

	table	columns	referenced_table	referenced_columns	valid
0	account	[district_id]	district	[district_id]	True
1	card	[disp_id]	disp	[disp_id]	True
2	client	[district_id]	district	[district_id]	True
3	disp	[account_id]	account	[account_id]	True
4	disp	[client_id]	client	[client_id]	True
5	loan	[account_id]	account	[account_id]	True
6	order	[account_id]	account	[account_id]	True
7	trans	[account_id]	account	[account_id]	True

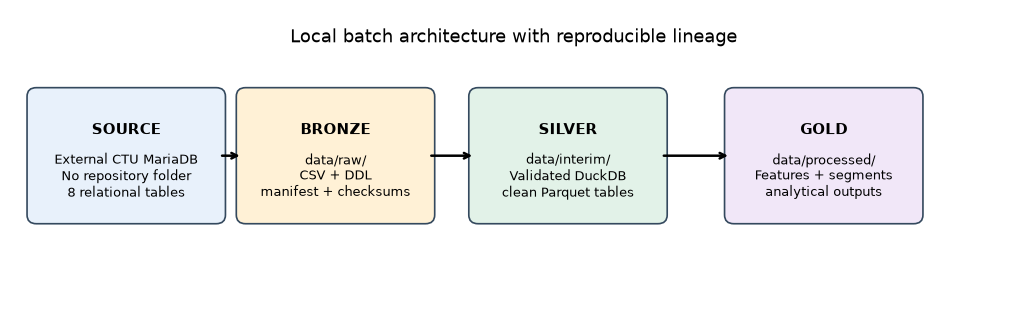

ETL and lineage

Extract: stream the public CTU MariaDB tables into immutable CSV files.
Validate: compare exact source/export row counts and record checksums and source DDL.
Load: reconstruct typed DuckDB tables with primary and foreign keys.
Transform: create purpose-specific Silver Parquet tables in this notebook.
Curate: create Gold customer features, segment assignments, and presentation tables later.

The raw snapshot is never modified. Every Silver output below is derived from the validated DuckDB database and can be reproduced by rerunning this notebook.

4. Data-quality baseline

Data quality is assessed before changing values. Missingness is interpreted in context: a null counterparty bank may be structurally correct for a cash transaction, while a missing district statistic is an incomplete observation.

Primary-key duplication and referential integrity are hard failures. Context-dependent missing values and valid extremes are documented rather than removed automatically.

Code

quality_rows = []

for table_name, metadata in manifest["tables"].items():
    quoted_table = '"' + table_name.replace('"', '""') + '"'
    primary_key = metadata["primary_key"]
    pk_columns = ", ".join('"' + column.replace('"', '""') + '"' for column in primary_key)

    duplicate_pk_count = connection.execute(
        "SELECT COUNT(*) FROM ("
        + "SELECT "
        + pk_columns
        + ", COUNT(*) AS n FROM "
        + quoted_table
        + " GROUP BY "
        + pk_columns
        + " HAVING COUNT(*) > 1)"
    ).fetchone()[0]

    null_pk_condition = " OR ".join(
        '"' + column.replace('"', '""') + '" IS NULL' for column in primary_key
    )
    null_pk_count = connection.execute(
        "SELECT COUNT(*) FROM " + quoted_table + " WHERE " + null_pk_condition
    ).fetchone()[0]

    for column in metadata["columns"]:
        quoted_column = '"' + column["name"].replace('"', '""') + '"'
        missing_count = connection.execute(
            "SELECT COUNT(*) FILTER (WHERE "
            + quoted_column
            + " IS NULL) FROM "
            + quoted_table
        ).fetchone()[0]
        if missing_count:
            quality_rows.append(
                {
                    "table": table_name,
                    "column": column["name"],
                    "missing_count": missing_count,
                    "missing_pct": 100 * missing_count / metadata["source_row_count"],
                }
            )

    assert duplicate_pk_count == 0, table_name + " contains duplicate primary keys"
    assert null_pk_count == 0, table_name + " contains null primary keys"

missingness = pd.DataFrame(quality_rows).sort_values(
    ["missing_pct", "table"], ascending=[False, True]
)
display(missingness.style.format({"missing_pct": "{:.2f}%"}))

	table	column	missing_count	missing_pct
4	trans	bank	782812	74.11%
5	trans	account	760931	72.04%
3	trans	k_symbol	481881	45.62%
2	trans	operation	183114	17.34%
0	district	A12	1	1.30%
1	district	A15	1	1.30%

Code

categorical_queries = {
    "account.frequency": "SELECT frequency AS value, COUNT(*) AS rows FROM account GROUP BY 1 ORDER BY 2 DESC",
    "disp.type": "SELECT type AS value, COUNT(*) AS rows FROM disp GROUP BY 1 ORDER BY 2 DESC",
    "card.type": "SELECT type AS value, COUNT(*) AS rows FROM card GROUP BY 1 ORDER BY 2 DESC",
    "loan.status": "SELECT status AS value, COUNT(*) AS rows FROM loan GROUP BY 1 ORDER BY 1",
    "trans.type": "SELECT type AS value, COUNT(*) AS rows FROM trans GROUP BY 1 ORDER BY 2 DESC",
    "trans.operation": "SELECT COALESCE(operation, '<NULL>') AS value, COUNT(*) AS rows FROM trans GROUP BY 1 ORDER BY 2 DESC",
    "trans.k_symbol": "SELECT COALESCE(NULLIF(TRIM(k_symbol), ''), '<UNSPECIFIED>') AS value, COUNT(*) AS rows FROM trans GROUP BY 1 ORDER BY 2 DESC",
}

categorical_profiles = []
for field, query in categorical_queries.items():
    profile = connection.execute(query).fetchdf()
    profile.insert(0, "field", field)
    categorical_profiles.append(profile)

display(pd.concat(categorical_profiles, ignore_index=True))

date_coverage = connection.execute(
    """
    SELECT 'account' AS table_name, MIN(date) AS first_date, MAX(date) AS last_date
    FROM account
    UNION ALL
    SELECT 'card', MIN(issued), MAX(issued) FROM card
    UNION ALL
    SELECT 'loan', MIN(date), MAX(date) FROM loan
    UNION ALL
    SELECT 'trans', MIN(date), MAX(date) FROM trans
    """
).fetchdf()
display(date_coverage)

	field	value	rows
0	account.frequency	POPLATEK MESICNE	4167
1	account.frequency	POPLATEK TYDNE	240
2	account.frequency	POPLATEK PO OBRATU	93
3	disp.type	OWNER	4500
4	disp.type	DISPONENT	869
5	card.type	classic	659
6	card.type	junior	145
7	card.type	gold	88
8	loan.status	A	203
9	loan.status	B	31
10	loan.status	C	403
11	loan.status	D	45
12	trans.type	VYDAJ	634571
13	trans.type	PRIJEM	405083
14	trans.type	VYBER	16666
15	trans.operation	VYBER	434918
16	trans.operation	PREVOD NA UCET	208283
17	trans.operation	<NULL>	183114
18	trans.operation	VKLAD	156743
19	trans.operation	PREVOD Z UCTU	65226
20	trans.operation	VYBER KARTOU	8036
21	trans.k_symbol	<UNSPECIFIED>	535314
22	trans.k_symbol	UROK	183114
23	trans.k_symbol	SLUZBY	155832
24	trans.k_symbol	SIPO	118065
25	trans.k_symbol	DUCHOD	30338
26	trans.k_symbol	POJISTNE	18500
27	trans.k_symbol	UVER	13580
28	trans.k_symbol	SANKC. UROK	1577

	table_name	first_date	last_date
0	account	1993-01-01	1997-12-29
1	card	1993-11-07	1998-12-29
2	loan	1993-07-05	1998-12-08
3	trans	1993-01-01	1998-12-31

Preparation decisions

Missing values

Transaction operation, purpose, bank, and counterparty account are often structurally absent. They remain null in the clean table; a separate standardized purpose label uses “unspecified” for analysis.
District A12 and A15 each have one missing value, both for district 69 (Jesenik). They remain null in Silver data. Model-specific imputation will occur inside a fitted pipeline, preventing information leakage.
Empty transaction-purpose strings and database nulls are retained in the raw field but combined only in the standardized analytical label.

Dates

Dates are already typed as DATE by the local builder. Clean tables rename them explicitly and derive calendar fields only when those fields have analytical meaning.

Categorical standardization

Original Czech codes remain available in fields ending in _raw. English analytical labels are added with explicit mappings. Unrecognized codes fail validation rather than silently becoming missing.

Numerical transformations

Amounts and balances are not scaled in Silver data. Amount distributions may later use log1p or robust scaling, but negative balances require separate treatment because log1p is not defined for sufficiently negative values.

Scaling and encoding

Scaling and one-hot encoding belong inside model-specific scikit-learn pipelines fitted on training data. Persisted Silver tables contain interpretable values.

Feature interactions

Signed transaction amount, service-count indicators, cash-flow ratios, activity rates, and balance volatility are candidate interactions. Only signed amount and static service indicators are introduced here; behavioral features are developed in Notebook 2.

Leakage prevention

Any loan feature derived from transactions must use transactions dated on or before the loan date. Forecasts use chronological splits. Clustering preprocessing is fitted without using future evaluation data.

Code

ACCOUNT_FREQUENCY_MAP = {
    "POPLATEK MESICNE": "monthly",
    "POPLATEK TYDNE": "weekly",
    "POPLATEK PO OBRATU": "after_transaction",
}
TRANSACTION_DIRECTION_MAP = {
    "PRIJEM": "inflow",
    "VYDAJ": "outflow",
    "VYBER": "outflow",
}
TRANSACTION_OPERATION_MAP = {
    "VYBER KARTOU": "card_withdrawal",
    "VKLAD": "cash_deposit",
    "PREVOD Z UCTU": "incoming_transfer",
    "VYBER": "cash_withdrawal",
    "PREVOD NA UCET": "outgoing_transfer",
}
TRANSACTION_PURPOSE_MAP = {
    "POJISTNE": "insurance",
    "SLUZBY": "statement_fee",
    "UROK": "interest_credit",
    "SANKC. UROK": "penalty_interest",
    "SIPO": "household_payment",
    "DUCHOD": "pension",
    "UVER": "loan_payment",
}
LOAN_STATUS_MAP = {
    "A": "completed_no_problems",
    "B": "completed_with_problems",
    "C": "active_no_problems",
    "D": "active_with_problems",
}

mapping_checks = {
    "account.frequency": (
        set(connection.execute("SELECT DISTINCT frequency FROM account").fetchnumpy()["frequency"])
        - set(ACCOUNT_FREQUENCY_MAP)
    ),
    "trans.type": (
        set(connection.execute("SELECT DISTINCT type FROM trans").fetchnumpy()["type"])
        - set(TRANSACTION_DIRECTION_MAP)
    ),
    "trans.operation": (
        set(
            connection.execute(
                "SELECT DISTINCT operation FROM trans WHERE operation IS NOT NULL"
            ).fetchnumpy()["operation"]
        )
        - set(TRANSACTION_OPERATION_MAP)
    ),
    "trans.k_symbol": (
        set(
            connection.execute(
                "SELECT DISTINCT TRIM(k_symbol) AS k_symbol FROM trans "
                "WHERE NULLIF(TRIM(k_symbol), '') IS NOT NULL"
            ).fetchnumpy()["k_symbol"]
        )
        - set(TRANSACTION_PURPOSE_MAP)
    ),
    "loan.status": (
        set(connection.execute("SELECT DISTINCT status FROM loan").fetchnumpy()["status"])
        - set(LOAN_STATUS_MAP)
    ),
}

mapping_validation = pd.DataFrame(
    [
        {"field": field, "unmapped_values": sorted(values), "valid": not values}
        for field, values in mapping_checks.items()
    ]
)
display(mapping_validation)
assert mapping_validation["valid"].all()

	field	unmapped_values	valid
0	account.frequency	[]	True
1	trans.type	[]	True
2	trans.operation	[]	True
3	trans.k_symbol	[]	True
4	loan.status	[]	True

Invalid values, valid extremes, and behavioral outliers

Invalid values violate schema or domain rules—for example, duplicate transaction IDs, negative transaction amounts, impossible dates, or orphaned foreign keys.

Valid extremes are unusual but permissible observations—for example, a large transfer or a negative balance. They are retained and may motivate robust transformations.

Behavioral outliers are observations that deviate from a contextual baseline. They can only be identified after defining comparable accounts or segments.

Therefore:

Invalid value ≠ valid extreme value ≠ behavioral outlier

Code

extreme_value_audit = connection.execute(
    """
    SELECT
        COUNT(*) FILTER (WHERE amount < 0) AS invalid_negative_amount_rows,
        COUNT(*) FILTER (WHERE balance < 0) AS negative_balance_rows,
        COUNT(DISTINCT account_id) FILTER (WHERE balance < 0) AS accounts_with_negative_balance,
        MIN(amount) AS minimum_amount,
        MAX(amount) AS maximum_amount,
        MIN(balance) AS minimum_balance,
        MAX(balance) AS maximum_balance
    FROM trans
    """
).fetchdf()
display(extreme_value_audit)

assert extreme_value_audit.loc[0, "invalid_negative_amount_rows"] == 0

	invalid_negative_amount_rows	negative_balance_rows	accounts_with_negative_balance	minimum_amount	maximum_amount	minimum_balance	maximum_balance
0	0	2999	288	0	87400	-41126	209637

Model-specific preprocessing pipeline

The Silver outputs remain human-readable. When a later notebook trains a model, numeric imputation/scaling and categorical imputation/encoding will be fitted inside a pipeline. This prevents statistics from the evaluation data leaking into training transformations.

Code

def make_preprocessor(
    numeric_features: list[str],
    categorical_features: list[str],
) -> ColumnTransformer:
    numeric_pipeline = Pipeline(
        steps=[
            ("imputer", SimpleImputer(strategy="median")),
            ("scaler", StandardScaler()),
        ]
    )
    categorical_pipeline = Pipeline(
        steps=[
            ("imputer", SimpleImputer(strategy="most_frequent")),
            ("encoder", OneHotEncoder(handle_unknown="ignore")),
        ]
    )
    return ColumnTransformer(
        transformers=[
            ("numeric", numeric_pipeline, numeric_features),
            ("categorical", categorical_pipeline, categorical_features),
        ],
        remainder="drop",
    )


preprocessor_example = make_preprocessor(
    numeric_features=["average_balance", "monthly_transaction_count"],
    categorical_features=["statement_frequency"],
)
preprocessor_example

ColumnTransformer(transformers=[('numeric',
                                 Pipeline(steps=[('imputer',
                                                  SimpleImputer(strategy='median')),
                                                 ('scaler', StandardScaler())]),
                                 ['average_balance',
                                  'monthly_transaction_count']),
                                ('categorical',
                                 Pipeline(steps=[('imputer',
                                                  SimpleImputer(strategy='most_frequent')),
                                                 ('encoder',
                                                  OneHotEncoder(handle_unknown='ignore'))]),
                                 ['statement_frequency'])])

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

5. Modern data architecture

The project uses a local, batch-oriented medallion pattern:

Bronze: immutable CSV snapshot, original MariaDB DDL, checksums, and provenance.
Silver: constrained DuckDB database and cleaned, purpose-specific Parquet tables.
Gold: customer features, segment assignments, behavioral outliers, forecasts, and dashboard aggregates created later.

A warehouse emphasizes curated structured data and governed reporting. A data lake stores flexible raw files but can suffer from weak governance. A lakehouse combines low-cost file storage with schema, transactions, and analytical management. This project is a small local analogue: files provide reproducibility, DuckDB provides relational querying, and Parquet provides portable analytical storage.

The source is static and modest enough for batch processing. Streaming would add complexity without analytical benefit. At larger scale, object storage could hold Bronze and Silver Parquet data, a catalog could manage schemas and lineage, and a cloud warehouse or lakehouse engine could serve governed Gold tables.

Governance, versioning, and privacy: code and non-sensitive manifests belong in version control; raw and derived banking records remain excluded. Checksums identify the exact source snapshot, schemas and validation reports preserve lineage, and regenerated outputs inherit that provenance. A deployed system would add role-based access, encryption, retention policies, audit logs, and suppression of account/client identifiers from reports.

Code

fig, ax = plt.subplots(figsize=(13, 3.8))
ax.set_xlim(0, 13)
ax.set_ylim(0, 4)
ax.axis("off")

layers = [
    (0.3, "#E8F1FB", "SOURCE", "External CTU MariaDB\nNo repository folder\n8 relational tables"),
    (3.0, "#FFF1D6", "BRONZE", "data/raw/\nCSV + DDL\nmanifest + checksums"),
    (6.0, "#E2F2E8", "SILVER", "data/interim/\nValidated DuckDB\nclean Parquet tables"),
    (9.3, "#F1E7F8", "GOLD", "data/processed/\nFeatures + segments\nanalytical outputs"),
]

for x, color, title, detail in layers:
    box = FancyBboxPatch(
        (x, 1.15),
        2.4,
        1.7,
        boxstyle="round,pad=0.08,rounding_size=0.12",
        facecolor=color,
        edgecolor="#34495E",
        linewidth=1.2,
    )
    ax.add_patch(box)
    ax.text(x + 1.2, 2.35, title, ha="center", va="center", fontsize=11, weight="bold")
    ax.text(x + 1.2, 1.72, detail, ha="center", va="center", fontsize=9)

for start, end in [(2.7, 3.0), (5.4, 6.0), (8.4, 9.3)]:
    ax.annotate("", xy=(end, 2.0), xytext=(start, 2.0), arrowprops={"arrowstyle": "->", "lw": 1.8})

ax.text(6.5, 3.55, "Local batch architecture with reproducible lineage", ha="center", fontsize=13)
plt.show()

6. Build the Silver analytical tables

Four outputs are produced at explicit grains:

Output	Grain	Purpose
transactions_clean.parquet	Transaction	Standardized transaction analysis
accounts_clients.parquet	Client–account disposition	Ownership and authorized-user relationships
loans_clean.parquet	Loan	Interpretable loan status and future bounded modelling
account_analytical_base.parquet	Account	One-row-per-account base for behavioral feature engineering

Source columns are preserved or renamed transparently. Standardized labels are added rather than overwriting raw categorical values.

Code

TRANSACTIONS_SQL = """
SELECT
    trans_id,
    account_id,
    date AS transaction_date,
    YEAR(date) AS transaction_year,
    MONTH(date) AS transaction_month_number,
    STRFTIME(date, '%Y-%m') AS transaction_month,
    type AS transaction_type_raw,
    CASE type
        WHEN 'PRIJEM' THEN 'inflow'
        WHEN 'VYDAJ' THEN 'outflow'
        WHEN 'VYBER' THEN 'outflow'
    END AS transaction_direction,
    operation AS operation_raw,
    CASE operation
        WHEN 'VYBER KARTOU' THEN 'card_withdrawal'
        WHEN 'VKLAD' THEN 'cash_deposit'
        WHEN 'PREVOD Z UCTU' THEN 'incoming_transfer'
        WHEN 'VYBER' THEN 'cash_withdrawal'
        WHEN 'PREVOD NA UCET' THEN 'outgoing_transfer'
        ELSE NULL
    END AS operation,
    k_symbol AS purpose_raw,
    CASE NULLIF(TRIM(k_symbol), '')
        WHEN 'POJISTNE' THEN 'insurance'
        WHEN 'SLUZBY' THEN 'statement_fee'
        WHEN 'UROK' THEN 'interest_credit'
        WHEN 'SANKC. UROK' THEN 'penalty_interest'
        WHEN 'SIPO' THEN 'household_payment'
        WHEN 'DUCHOD' THEN 'pension'
        WHEN 'UVER' THEN 'loan_payment'
        ELSE 'unspecified'
    END AS transaction_purpose,
    amount,
    CASE WHEN type = 'PRIJEM' THEN amount ELSE -amount END AS signed_amount,
    balance,
    bank AS counterparty_bank,
    account AS counterparty_account
FROM trans
"""

ACCOUNTS_CLIENTS_SQL = """
WITH card_by_disposition AS (
    SELECT
        disp_id,
        COUNT(*) AS card_count,
        MIN(issued) AS first_card_issued,
        STRING_AGG(DISTINCT type, ', ' ORDER BY type) AS card_types
    FROM card
    GROUP BY disp_id
)
SELECT
    a.account_id,
    a.district_id AS account_district_id,
    a.frequency AS statement_frequency_raw,
    CASE a.frequency
        WHEN 'POPLATEK MESICNE' THEN 'monthly'
        WHEN 'POPLATEK TYDNE' THEN 'weekly'
        WHEN 'POPLATEK PO OBRATU' THEN 'after_transaction'
    END AS statement_frequency,
    a.date AS account_open_date,
    d.disp_id,
    d.type AS relationship_type,
    c.client_id,
    c.gender,
    c.birth_date,
    c.district_id AS client_district_id,
    COALESCE(cb.card_count, 0) AS card_count,
    cb.first_card_issued,
    cb.card_types
FROM account AS a
JOIN disp AS d USING (account_id)
JOIN client AS c USING (client_id)
LEFT JOIN card_by_disposition AS cb USING (disp_id)
"""

LOANS_SQL = """
SELECT
    loan_id,
    account_id,
    date AS loan_date,
    amount AS loan_amount,
    duration AS duration_months,
    payments AS monthly_payment,
    status AS loan_status_raw,
    CASE status
        WHEN 'A' THEN 'completed_no_problems'
        WHEN 'B' THEN 'completed_with_problems'
        WHEN 'C' THEN 'active_no_problems'
        WHEN 'D' THEN 'active_with_problems'
    END AS loan_status,
    status IN ('A', 'B') AS is_completed,
    CASE
        WHEN status = 'A' THEN FALSE
        WHEN status = 'B' THEN TRUE
        ELSE NULL
    END AS completed_repayment_problem
FROM loan
"""

ACCOUNT_BASE_SQL = """
WITH owner AS (
    SELECT
        d.account_id,
        c.client_id AS owner_client_id,
        c.gender AS owner_gender,
        c.birth_date AS owner_birth_date,
        c.district_id AS owner_district_id
    FROM disp AS d
    JOIN client AS c USING (client_id)
    WHERE d.type = 'OWNER'
),
relationship_summary AS (
    SELECT
        account_id,
        COUNT(*) AS client_count,
        COUNT(*) FILTER (WHERE type = 'DISPONENT') AS disponent_count
    FROM disp
    GROUP BY account_id
),
card_summary AS (
    SELECT
        d.account_id,
        COUNT(*) AS card_count,
        MIN(c.issued) AS first_card_issued,
        STRING_AGG(DISTINCT c.type, ', ' ORDER BY c.type) AS card_types
    FROM disp AS d
    JOIN card AS c USING (disp_id)
    GROUP BY d.account_id
),
loan_summary AS (
    SELECT account_id, COUNT(*) AS loan_count
    FROM loan
    GROUP BY account_id
),
order_summary AS (
    SELECT
        account_id,
        COUNT(*) AS standing_order_count,
        SUM(amount) AS standing_order_total_amount
    FROM "order"
    GROUP BY account_id
),
transaction_summary AS (
    SELECT
        account_id,
        COUNT(*) AS transaction_count,
        MIN(date) AS first_transaction_date,
        MAX(date) AS last_transaction_date
    FROM trans
    GROUP BY account_id
)
SELECT
    a.account_id,
    a.district_id AS account_district_id,
    dist.A2 AS account_district_name,
    dist.A3 AS account_region,
    dist.A4 AS district_inhabitants,
    dist.A10 AS district_urbanization_pct,
    dist.A11 AS district_average_salary,
    dist.A12 AS district_unemployment_1995,
    dist.A13 AS district_unemployment_1996,
    dist.A14 AS district_entrepreneurs_per_1000,
    dist.A15 AS district_crimes_1995,
    dist.A16 AS district_crimes_1996,
    a.frequency AS statement_frequency_raw,
    CASE a.frequency
        WHEN 'POPLATEK MESICNE' THEN 'monthly'
        WHEN 'POPLATEK TYDNE' THEN 'weekly'
        WHEN 'POPLATEK PO OBRATU' THEN 'after_transaction'
    END AS statement_frequency,
    a.date AS account_open_date,
    o.owner_client_id,
    o.owner_gender,
    o.owner_birth_date,
    o.owner_district_id,
    rs.client_count,
    rs.disponent_count,
    rs.disponent_count > 0 AS has_disponent,
    COALESCE(cs.card_count, 0) AS card_count,
    COALESCE(cs.card_count, 0) > 0 AS has_card,
    cs.first_card_issued,
    cs.card_types,
    COALESCE(ls.loan_count, 0) AS loan_count,
    COALESCE(ls.loan_count, 0) > 0 AS has_loan,
    COALESCE(os.standing_order_count, 0) AS standing_order_count,
    COALESCE(os.standing_order_count, 0) > 0 AS has_standing_order,
    COALESCE(os.standing_order_total_amount, 0) AS standing_order_total_amount,
    ts.transaction_count,
    ts.first_transaction_date,
    ts.last_transaction_date
FROM account AS a
JOIN district AS dist USING (district_id)
JOIN owner AS o USING (account_id)
JOIN relationship_summary AS rs USING (account_id)
LEFT JOIN card_summary AS cs USING (account_id)
LEFT JOIN loan_summary AS ls USING (account_id)
LEFT JOIN order_summary AS os USING (account_id)
JOIN transaction_summary AS ts USING (account_id)
"""

silver_outputs = {
    "transactions_clean.parquet": TRANSACTIONS_SQL,
    "accounts_clients.parquet": ACCOUNTS_CLIENTS_SQL,
    "loans_clean.parquet": LOANS_SQL,
    "account_analytical_base.parquet": ACCOUNT_BASE_SQL,
}


def sql_literal(path: Path) -> str:
    return "'" + str(path).replace("'", "''") + "'"


for filename, query in silver_outputs.items():
    output_path = INTERIM_DIR / filename
    connection.execute(
        "COPY (" + query.strip().rstrip(";") + ") TO "
        + sql_literal(output_path)
        + " (FORMAT PARQUET, COMPRESSION ZSTD)"
    )
    print("Wrote", output_path.relative_to(PROJECT_ROOT))

Wrote data/interim/transactions_clean.parquet
Wrote data/interim/accounts_clients.parquet
Wrote data/interim/loans_clean.parquet
Wrote data/interim/account_analytical_base.parquet

Code

expected_rows = {
    "transactions_clean.parquet": manifest["tables"]["trans"]["source_row_count"],
    "accounts_clients.parquet": manifest["tables"]["disp"]["source_row_count"],
    "loans_clean.parquet": manifest["tables"]["loan"]["source_row_count"],
    "account_analytical_base.parquet": manifest["tables"]["account"]["source_row_count"],
}
primary_keys = {
    "transactions_clean.parquet": ["trans_id"],
    "accounts_clients.parquet": ["disp_id"],
    "loans_clean.parquet": ["loan_id"],
    "account_analytical_base.parquet": ["account_id"],
}

validation_rows = []
for filename, expected_count in expected_rows.items():
    path = INTERIM_DIR / filename
    actual_count = connection.execute(
        "SELECT COUNT(*) FROM read_parquet(" + sql_literal(path) + ")"
    ).fetchone()[0]
    key_expression = ", ".join('"' + key + '"' for key in primary_keys[filename])
    duplicate_keys = connection.execute(
        "SELECT COUNT(*) FROM (SELECT "
        + key_expression
        + ", COUNT(*) AS n FROM read_parquet("
        + sql_literal(path)
        + ") GROUP BY "
        + key_expression
        + " HAVING COUNT(*) > 1)"
    ).fetchone()[0]

    validation_rows.append(
        {
            "output": filename,
            "expected_rows": expected_count,
            "actual_rows": actual_count,
            "duplicate_keys": duplicate_keys,
            "size_mb": round(path.stat().st_size / 1_048_576, 3),
            "valid": actual_count == expected_count and duplicate_keys == 0,
        }
    )

output_validation = pd.DataFrame(validation_rows)
display(output_validation)
assert output_validation["valid"].all()

transaction_mapping_validation = connection.execute(
    "SELECT "
    "COUNT(*) FILTER (WHERE transaction_direction IS NULL) AS unmapped_directions, "
    "COUNT(*) FILTER (WHERE transaction_purpose IS NULL) AS null_standardized_purpose "
    "FROM read_parquet(" + sql_literal(INTERIM_DIR / "transactions_clean.parquet") + ")"
).fetchdf()
display(transaction_mapping_validation)
assert transaction_mapping_validation.loc[0, "unmapped_directions"] == 0
assert transaction_mapping_validation.loc[0, "null_standardized_purpose"] == 0

	output	expected_rows	actual_rows	size_mb	valid
0	transactions_clean.parquet	1056320	1056320	7.636	True
1	accounts_clients.parquet	5369	5369	0.065	True
2	loans_clean.parquet	682	682	0.010	True
3	account_analytical_base.parquet	4500	4500	0.121	True

	unmapped_directions	null_standardized_purpose
0	0	0

7. Foundation findings and handoff

The snapshot contains eight relational tables, 1,079,680 total rows, and 1,056,320 transactions covering 1993–1998.
All source, export, and local row counts match.
All eight declared foreign-key relationships contain zero orphaned rows.
Primary keys are complete and unique.
Every account has one owner; 869 accounts have an additional authorized disposition.
Missing transaction fields are largely structural. Two district statistics are missing for one district and remain null.
Transaction amounts are non-negative, while negative balances occur and are retained as valid financial states.
Original Czech codes are preserved alongside validated English analytical labels.
Four purpose-specific Silver tables have been created and validated.

Next notebook: 02_behavioral_and_temporal_analysis.ipynb will perform EDA, construct behavioral features, analyze temporal patterns, and prepare association-rule inputs. It will read the Silver Parquet outputs created here rather than repeat ingestion or cleaning.

	transformers transformers: list of tuples List of (name, transformer, columns) tuples specifying the transformer objects to be applied to subsets of the data. name : str Like in Pipeline and FeatureUnion, this allows the transformer and its parameters to be set using ``set_params`` and searched in grid search. transformer : {'drop', 'passthrough'} or estimator Estimator must support :term:`fit` and :term:`transform`. Special-cased strings 'drop' and 'passthrough' are accepted as well, to indicate to drop the columns or to pass them through untransformed, respectively. columns : str, array-like of str, int, array-like of int, array-like of bool, slice or callable Indexes the data on its second axis. Integers are interpreted as positional columns, while strings can reference DataFrame columns by name. A scalar string or int should be used where ``transformer`` expects X to be a 1d array-like (vector), otherwise a 2d array will be passed to the transformer. A callable is passed the input data `X` and can return any of the above. To select multiple columns by name or dtype, you can use :obj:`make_column_selector`.	[('numeric', ...), ('categorical', ...)]
	remainder remainder: {'drop', 'passthrough'} or estimator, default='drop' By default, only the specified columns in `transformers` are transformed and combined in the output, and the non-specified columns are dropped. (default of ``'drop'``). By specifying ``remainder='passthrough'``, all remaining columns that were not specified in `transformers`, but present in the data passed to `fit` will be automatically passed through. This subset of columns is concatenated with the output of the transformers. For dataframes, extra columns not seen during `fit` will be excluded from the output of `transform`. By setting ``remainder`` to be an estimator, the remaining non-specified columns will use the ``remainder`` estimator. The estimator must support :term:`fit` and :term:`transform`. Note that using this feature requires that the DataFrame columns input at :term:`fit` and :term:`transform` have identical order.	'drop'
	sparse_threshold sparse_threshold: float, default=0.3 If the output of the different transformers contains sparse matrices, these will be stacked as a sparse matrix if the overall density is lower than this value. Use ``sparse_threshold=0`` to always return dense. When the transformed output consists of all dense data, the stacked result will be dense, and this keyword will be ignored.	0.3
	n_jobs n_jobs: int, default=None Number of jobs to run in parallel. ``None`` means 1 unless in a :obj:`joblib.parallel_backend` context. ``-1`` means using all processors. See :term:`Glossary <n_jobs>` for more details.	None
	transformer_weights transformer_weights: dict, default=None Multiplicative weights for features per transformer. The output of the transformer is multiplied by these weights. Keys are transformer names, values the weights.	None
	verbose verbose: bool, default=False If True, the time elapsed while fitting each transformer will be printed as it is completed.	False
	verbose_feature_names_out verbose_feature_names_out: bool, str or Callable[[str, str], str], default=True - If True, :meth:`ColumnTransformer.get_feature_names_out` will prefix all feature names with the name of the transformer that generated that feature. It is equivalent to setting `verbose_feature_names_out="{transformer_name}__{feature_name}"`. - If False, :meth:`ColumnTransformer.get_feature_names_out` will not prefix any feature names and will error if feature names are not unique. - If ``Callable[[str, str], str]``, :meth:`ColumnTransformer.get_feature_names_out` will rename all the features using the name of the transformer. The first argument of the callable is the transformer name and the second argument is the feature name. The returned string will be the new feature name. - If ``str``, it must be a string ready for formatting. The given string will be formatted using two field names: ``transformer_name`` and ``feature_name``. e.g. ``"{feature_name}__{transformer_name}"``. See :meth:`str.format` method from the standard library for more info. .. versionadded:: 1.0 .. versionchanged:: 1.6 `verbose_feature_names_out` can be a callable or a string to be formatted.	True

	handle_unknown handle_unknown: {'error', 'ignore', 'infrequent_if_exist', 'warn'}, default='error' Specifies the way unknown categories are handled during :meth:`transform`. - 'error' : Raise an error if an unknown category is present during transform. - 'ignore' : When an unknown category is encountered during transform, the resulting one-hot encoded columns for this feature will be all zeros. In the inverse transform, an unknown category will be denoted as None. - 'infrequent_if_exist' : When an unknown category is encountered during transform, the resulting one-hot encoded columns for this feature will map to the infrequent category if it exists. The infrequent category will be mapped to the last position in the encoding. During inverse transform, an unknown category will be mapped to the category denoted `'infrequent'` if it exists. If the `'infrequent'` category does not exist, then :meth:`transform` and :meth:`inverse_transform` will handle an unknown category as with `handle_unknown='ignore'`. Infrequent categories exist based on `min_frequency` and `max_categories`. Read more in the :ref:`User Guide <encoder_infrequent_categories>`. - 'warn' : When an unknown category is encountered during transform a warning is issued, and the encoding then proceeds as described for `handle_unknown="infrequent_if_exist"`. .. versionchanged:: 1.1 `'infrequent_if_exist'` was added to automatically handle unknown categories and infrequent categories. .. versionadded:: 1.6 The option `"warn"` was added in 1.6.	'ignore'
	categories categories: 'auto' or a list of array-like, default='auto' Categories (unique values) per feature: - 'auto' : Determine categories automatically from the training data. - list : ``categories[i]`` holds the categories expected in the ith column. The passed categories should not mix strings and numeric values within a single feature, and should be sorted in case of numeric values. The used categories can be found in the ``categories_`` attribute. .. versionadded:: 0.20	'auto'
	drop drop: {'first', 'if_binary'} or an array-like of shape (n_features,), default=None Specifies a methodology to use to drop one of the categories per feature. This is useful in situations where perfectly collinear features cause problems, such as when feeding the resulting data into an unregularized linear regression model. However, dropping one category breaks the symmetry of the original representation and can therefore induce a bias in downstream models, for instance for penalized linear classification or regression models. - None : retain all features (the default). - 'first' : drop the first category in each feature. If only one category is present, the feature will be dropped entirely. - 'if_binary' : drop the first category in each feature with two categories. Features with 1 or more than 2 categories are left intact. - array : ``drop[i]`` is the category in feature ``X[:, i]`` that should be dropped. When `max_categories` or `min_frequency` is configured to group infrequent categories, the dropping behavior is handled after the grouping. .. versionadded:: 0.21 The parameter `drop` was added in 0.21. .. versionchanged:: 0.23 The option `drop='if_binary'` was added in 0.23. .. versionchanged:: 1.1 Support for dropping infrequent categories.	None
	sparse_output sparse_output: bool, default=True When ``True``, it returns a SciPy sparse matrix/array in "Compressed Sparse Row" (CSR) format. .. versionadded:: 1.2 `sparse` was renamed to `sparse_output`	True
	dtype dtype: number type, default=np.float64 Desired dtype of output.	<class 'numpy.float64'>
	min_frequency min_frequency: int or float, default=None Specifies the minimum frequency below which a category will be considered infrequent. - If `int`, categories with a smaller cardinality will be considered infrequent. - If `float`, categories with a smaller cardinality than `min_frequency * n_samples` will be considered infrequent. .. versionadded:: 1.1 Read more in the :ref:`User Guide <encoder_infrequent_categories>`.	None
	max_categories max_categories: int, default=None Specifies an upper limit to the number of output features for each input feature when considering infrequent categories. If there are infrequent categories, `max_categories` includes the category representing the infrequent categories along with the frequent categories. If `None`, there is no limit to the number of output features. .. versionadded:: 1.1 Read more in the :ref:`User Guide <encoder_infrequent_categories>`.	None
	feature_name_combiner feature_name_combiner: "concat" or callable, default="concat" Callable with signature `def callable(input_feature, category)` that returns a string. This is used to create feature names to be returned by :meth:`get_feature_names_out`. `"concat"` concatenates encoded feature name and category with `feature + "_" + str(category)`.E.g. feature X with values 1, 6, 7 create feature names `X_1, X_6, X_7`. .. versionadded:: 1.3	'concat'
